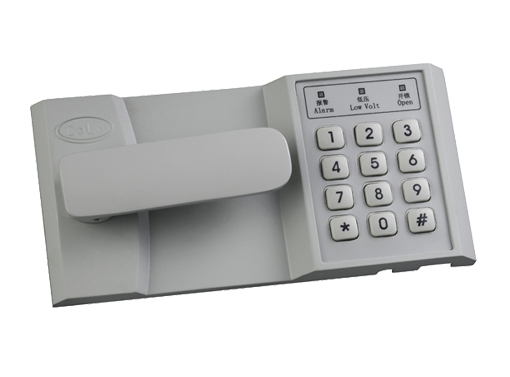

Combination Cabinet Lock (MA1015)
MA1015
Combination Cabinet Lock (MA1015) is a compact electronic lock with keypad and handle, ideal for Safe cabinets and office filing cabinet. The combination cabinet lock is featured by multi-level password management and tamper guard. LED indicator shows on-time operation status. Surface mounting offers easy installation. The Combination Cabinet Lock (MA1015) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.
Features
Ÿ Three levels password management, master code, jump code and user code
Ÿ LED indicator indicates operation status
Ÿ Alarm for battery replacement
Ÿ Password protection: allows input continuous code includes the correct password to open the door
Ÿ Handle for manual open after inputing password
Ÿ Accepts access control signals from RF key fobs , numeric keypads, or IC/ID card readers
Ÿ Allows external power supply in case the battery power runs out
Specification
|
Operation Voltage |
DC6V( AAA1.5V*4) alkaline battery |
|
Static current |
<10mA |
|
Dynamic current |
<220mA |
|
Operation Mode |
Fail Locked |
|
Alarm power |
< 4.7V |
|
Cycle Rating |
More than 10,000 times |
|
Anti-Static Electricity |
Air discharge 15KV,Contact discharge 8KV |
|
Working Temperature |
-15ºC ~ +65ºC |
|
Panel Dimension LxWxH |
190mm*33mm*92mm |
|
Cylinder Dimension LxWxH |
221.5mm*25mm*112mm |
|
Weight |
170g |
|
Protection Class |
IP20 |
Application:
The Combination cabinet lock is ideal for various applications as following:
Electronic lockers
Metal cabinet or steel furniture
Retail display cases and drawers
Filing cabinets
Utility cabinets and drawers
Museum display cases
Pharmaceutical cabinets and drawers
Electronic letterbox and delivery Locker
Warranty:
We guaranty that the products you order from us is true, accurate, current, and complete in all respects; you will be notified immediately of any changes to product information by e-mail. We offer one year warranty from the delivery date for any product in case of original defect or dysfunction. The buyer should return the product in the original conditions to us and should bear the shipping costs and we will bear the cost of parts replacement. We strive for 100% customer satisfaction on every sale we complete.
