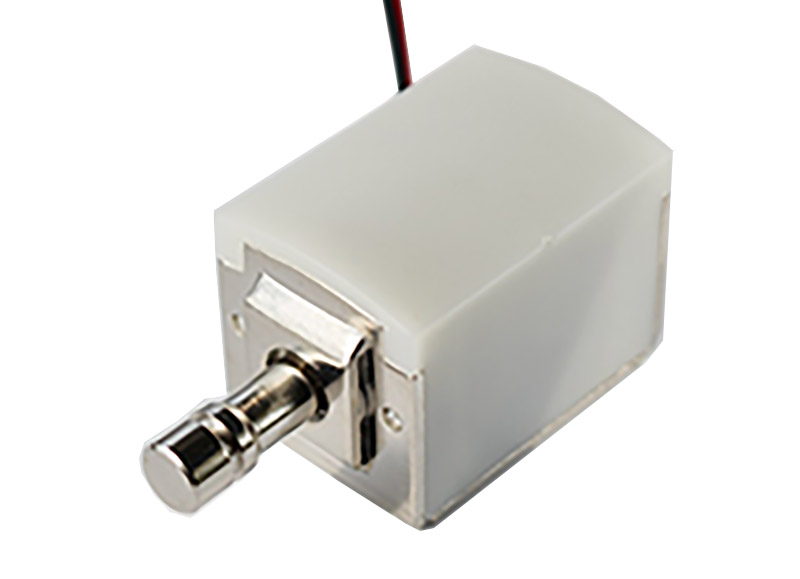

Solenoid Bolt Lock
MA1115
Features
Ÿ Superior heavy duty metal construction
Ÿ Nickel-plated steel housing
Ÿ Surface-mounted compact electric lock
Ÿ Symmetry design enable versatile installation and low install cost
Ÿ Accepts access control signals from RF key fobs , numeric keypads, or IC/ID card readers
Ÿ Can be fitted to locker, mail box and drawers etc
Specification
|
Operation Voltage |
12/24VDC ±10% |
|
Power Consumption |
12V DC 1500mA |
|
Operation Mode |
Fail Locked |
|
Holding Force |
100KG |
|
Length of tougue |
10mm |
|
Cycle Rating |
More than 100,000 times |
|
Working Temperature |
-20ºC ~ +60ºC |
|
Dimensions LxWxH |
72mm*56mm*13.8mm |
|
Protection Class |
IP20 |
Application:
Ÿ Public locker for supermarket, spa or school
Ÿ Retail display cases and drawers
Ÿ Gun or weapon cabinets
Ÿ File cabinets
Ÿ Utility cabinets and drawers
Ÿ Museum or retail product display cases
Ÿ Pharmaceutical cabinets and drawers
Ÿ Electronic Mailbox and delivery box.
