Electric Solenoid Bolt Lock
MA1206
Description
Images

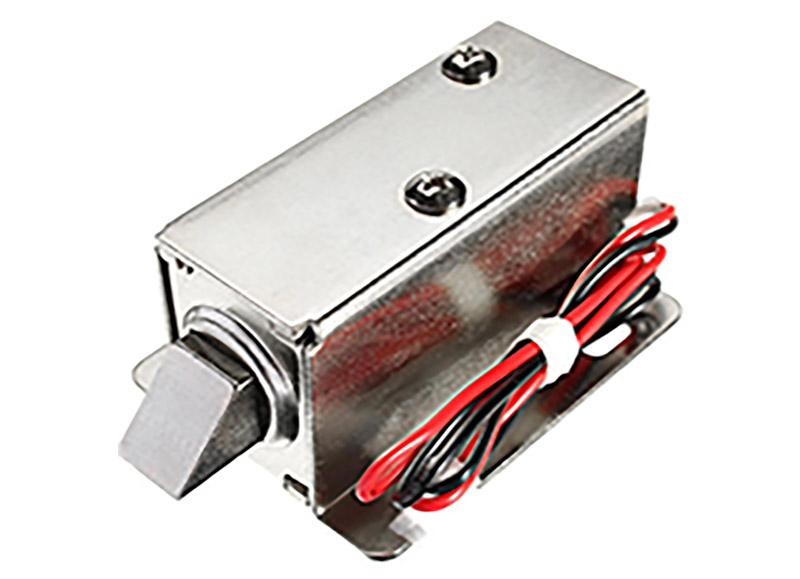

Electric Solenoid Bolt Lock (MA1206) is a compact and metal constructed lock. The cabinet lock ideal for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation, the cabinet Lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The Electric Solenoid Lock (MA1206) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features:

Ÿ   Superior heavy duty metal construction

Ÿ   Nickel-plated steel housing­

Ÿ   Surface-mounted compact electric lock

Ÿ   Symmetry design enable versatile installation and low install cost

Ÿ   Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,

Ÿ   Can be fitted to locker, mail box and drawers etc


 Specificaiton:

Operation Voltage:

12VDC ±10%

Power Consumption:

12V DC   600mA

Operation Mode:

Fail Locked

Length of tongue:

10mm

Cycle Rating:

More than 600,000

Holding Force

150kg

Working Temperature:

-20ºC ~ +60ºC

Dimensions LxWxH:

66mm*42mm*28mm

Net Weight:

150g

Protection Class:

IP20


Order particular



Model no.

Operation

Load capacity

Mode

Max. power on

Override

MA1206-103

12VDC 0.3A

0.1kg

Continuous

Continuous

Without

MA1206-165

12VDC 0.65A

0.2kg

Intermittent

35 seconds

Without

MA1206-183

12VDC 0.83A

0.2kg

Intermittent

30 seconds

Without

MA1206-110

12VDC 1.1A

0.3kg

Intermittent

10 seconds

Without

MA1206-248

24VDC 0.8A

0.35kg

Intermittent

10 seconds

Without

MA1206-235

24VDC 0.35A

0.2kg

Intermittent

20 seconds

Without
