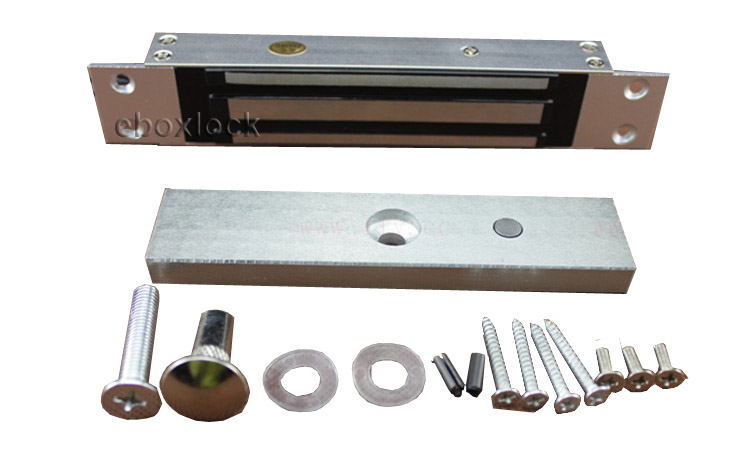

Electric Magnetic lock 12VDC 300LBS(180KG) Mortise Mount
ME1218F
Features
§ Superior alloy-constructed lock body and strikes
§ Architectural brushed stainless steel finish provides corrosion resistance
§ Flush mounting and easy installation using only a drill and allen wrench
§ Fully sealed electronics for tamper proof and weather proof
§ Instant release circuit, no residual magnetism
§ Low noise operation
§ Accepts access control signals from numeric keypads and card readers
§ Can be fitted to wooden door, glass door, metal door, fire door and security door.
Specification
|
Operation Voltage |
12VDC ±10% |
|
Power Consumption |
900mA@12VDC |
|
Operation Mode |
Fail unlock |
|
Holding Force |
180KG(350lbs) |
|
Cycle Rating |
More than 1,000,000 |
|
Working Temperature |
-10ºC ~ +55ºC |
|
Lock Dimensions LxWxH |
170mm*38.2mm*20.5mm |
|
Strike Dimensions LxWxH |
130mm*32mm*11mm |
|
Gross Weight |
1.07kg |
|
Protection Class |
IP20 |
Applications:
The electromagnetic lock is ideal for various applications as following:
Storage cabinet
Metal cabinet or steel furniture
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
