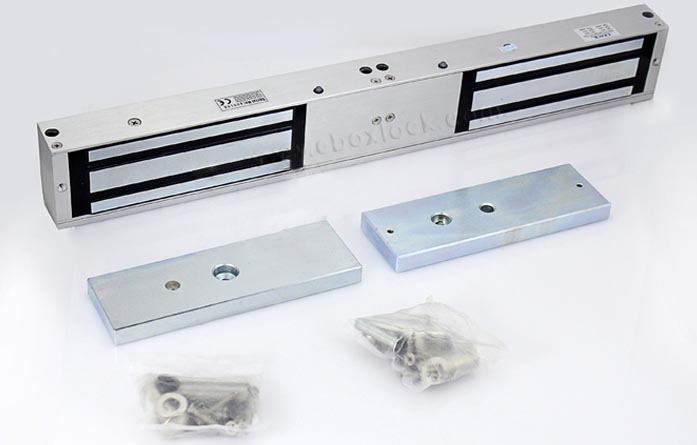

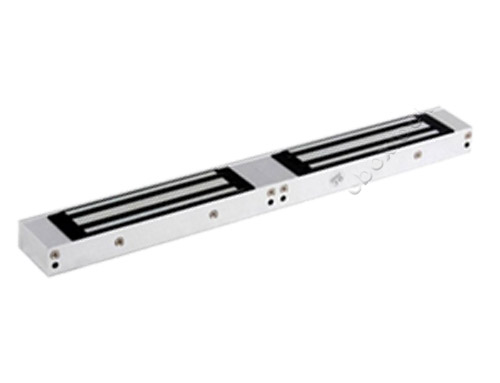

Electro Magnetic Lock 12VDC 600LBS(280KG) with Indicator and Delay
ME1228DLR
Features
§ Superior alloy-constructed lock body and strikes
§ Architectural brushed stainless steel finish provides corrosion resistance
§ LED Indicator for operation status
§ Built-in micro switch to report door status
§ Surface mounting and easy installation using only a drill and allen wrench
§ Fully sealed electronics for tamper proof and weather proof
§ Instant release circuit, no residual magnetism
§ Low noise operation
§ Accepts access control signals from numeric keypads and card readers
§ Can be fitted to wooden door, glass door, metal door, fire door and security door.
Specification
|
Operation Voltage |
12VDC ±10% |
|
Power Consumption |
500mA@12VDC |
|
Operation Mode |
Fail unlock |
|
Holding Force |
280KG(600lbs) |
|
Cycle Rating |
More than 1,000,000 |
|
Working Temperature |
-10ºC ~ +55ºC |
|
Lock Dimensions LxWxH |
250mm*48.5mm*25mm |
|
Strike Dimensions LxWxH |
180mm*38mm*11mm |
|
Gross Weight |
1.67kg |
Applications:
The electromagnetic lock is ideal for various applications as following:
Wooden door, glass door, metal door, fire door and security door
Warranty:
