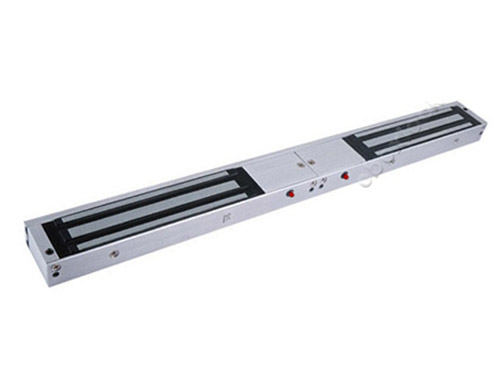

Home >> Products >> Electromagnetic Locks >> 700LBS Magnetic Locks>>Electro-Magnetic Lock 700LBS with Indicator and Delay

Features
§ Superior alloy-constructed lock body and strikes
§ Architectural brushed stainless steel finish provides corrosion resistance
§ LED Indicator for operation status
§ Setting for delay time
§ Surface mounting and easy installation using only a drill and allen wrench
§ Fully sealed electronics for tamper proof and weather proof
§ Instant release circuit, no residual magnetism
§ Low noise operation
§ Accepts access control signals from numeric keypads and card readers
§ Can be fitted to wooden door, glass door, metal door, fire door and security door.
Specification
Operation Voltage |
12VDC ±10% |
Power Consumption |
480mA@12VDC |
Operation Mode |
Fail unlock |
Holding Force |
320KG(700lbs) |
Cycle Rating |
More than 1,000,000 |
Working Temperature |
-10ºC ~ +55ºC |
Lock Dimensions LxWxH |
492mm*49.5mm*27.5mm |
Strike Dimensions LxWxH |
(180mm*38mm*11mm)*2 |
Gross Weight |
4.24kg |
Applications:
The electromagnetic lock is ideal for various applications as following:
Wooden door, glass door, metal door, fire door and security door
Warranty:
We guaranty that the products you order from us is true, accurate, current, and complete in all respects; you will be notified immediately of any changes to product information by e-mail. We offer two years warranty from the delivery date for any product in case of original defect or dysfunction. The buyer should return the product in the original conditions to us and bear the shipping costs and we will bear the cost of parts replacement. We strive for 100% customer satisfaction on every sale we complete.
