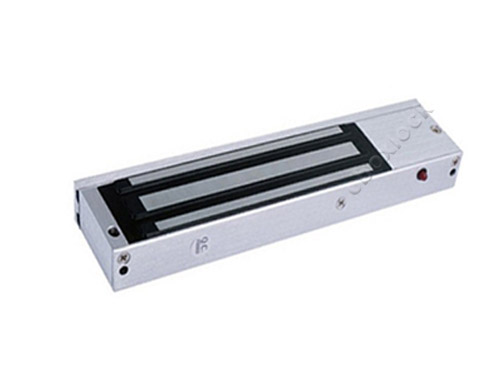

Electro-Magnetic Lock 700LBS with Reporting
ME1232S
Features
§ Superior alloy-constructed lock body and strikes
§ Architectural brushed stainless steel finish provides corrosion resistance
§ Built-in micro switch for door status reporting
§ Surface mounting and easy installation using only a drill and allen wrench
§ Fully sealed electronics for tamper proof and weather proof
§ Instant release circuit, no residual magnetism
§ Low noise operation
§ Accepts access control signals from numeric keypads and card readers
§ Can be fitted to wooden door, glass door, metal door, fire door and security door
Specification
|
Operation Voltage |
12VDC ±10% |
|
Power Consumption |
480mA@12VDC |
|
Operation Mode |
Fail unlock |
|
Holding Force |
320KG(700lbs) |
|
Cycle Rating |
More than 1,000,000 |
|
Working Temperature |
-10ºC ~ +55ºC |
|
Lock Dimensions LxWxH |
246mm*49.5mm*26.5mm |
|
Strike Dimensions LxWxH |
180mm*38mm*11mm |
|
Gross Weight |
2.12kg |
Applications:
The electromagnetic lock is ideal for various applications as following:
Wooden door, glass door, metal door, fire door and security door
Warranty:
