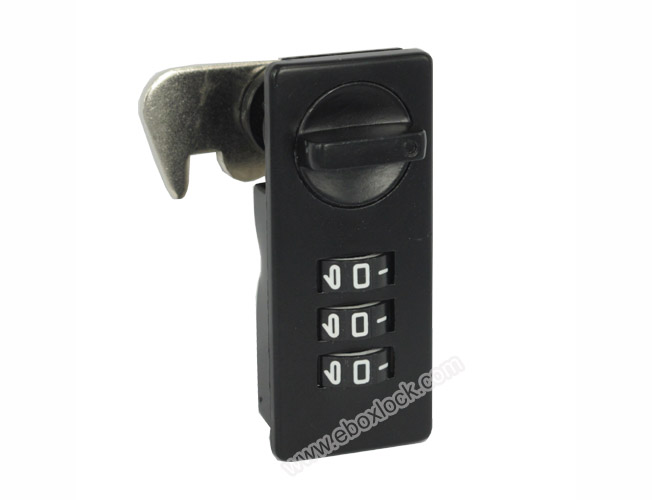

Combination Cam Lock MB3011 is a combination lock used for secure drawer and cabinet. The combination lock is featured by 1000 possible combinations and resettable codes. It consists of three numbers that must be entered by manipulating a dial in specific sequence. The lock cam can be rotated to be clockwise or counter clockwise.

Features

Ÿ   Zinc Alloy Construction

Ÿ   3 dial digit combination, secure and easy to use.

Ÿ   1000 possible code combinations

Ÿ   Codes easily resettable

Ÿ   Cam can be rotate clockwise or counter clockwise.

Ÿ   Suitable for metal cabinet door thickness 1.1mm

Applications:

The Combination cabinet lock is ideal for various applications as following:

Metal cabinet or steel furniture

Retail display cases and drawers

Filing cabinets

Utility cabinets and drawers

Museum display cases

Pharmaceutical cabinets and drawers

Quick Guide:

Code Setting

The default code is 000 and please reset the code as the following steps:

Push the reset button on the back of the lock body

Rotate the 3 dials to the desired combination in the middle of the keypad.

Pull the reset button back

Unlock the door

Dial the 3 digit code

Rotate the knob to open the door

The mounting hole is 61.5*26mm

Hint:

Consider writing the new code combination down and keep it in a safe place in case you forget the combination.

Spin the dial of the lock after opening to preventing code exposure.
