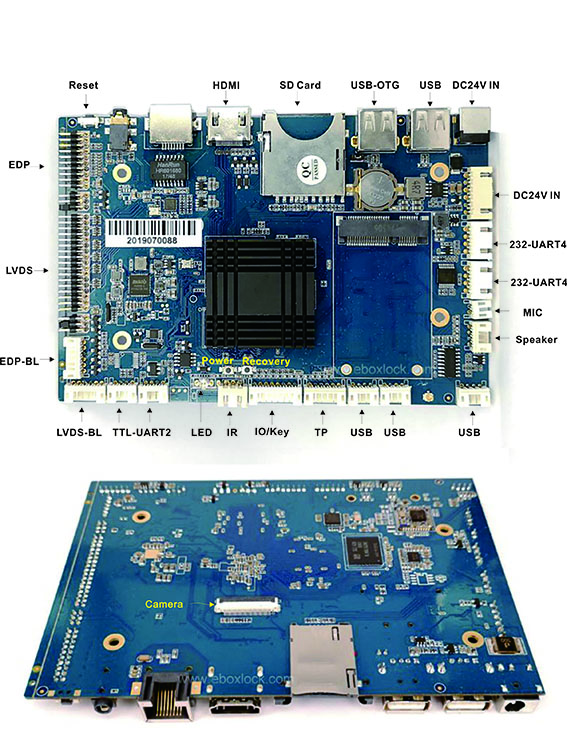

Parcel Locker System controller AM8046 is a powerful controller designed for automated locker system for self-service parcel delivery and pick up. It is featured by multi interfaces for TCP/IP, RS485, 4G and WIFI communication. By connecting to reply boards, the system can be expanded to 984 channels. The parcel locker system enables users to receive parcels 24 hours a day in a convenient, secure way, especially convenient for people who are not at home in the daytime to accept deliveries or confidential mail.

Features:
Ÿ   RK3288 Cortex-A17 processor

Ÿ   Android 5.1, CPU Clock Speed 1.8GHZ, Mali-T764 GPU

Ÿ   Allows LCD display with interface LVDS/EDP/HDMI

Ÿ   Supports display with max. resolution 3840x2160

Ÿ   Provides Ethernet/ WIFI/BT

Ÿ   Optional PCI-E 4G module supports online communication

Ÿ   Multiple extension interfaces: 5 USB ports(2 USB type A and 3 built in USB), 3 serial ports(2ch RS232 and 1 TTL)

Specifications:

Order Particular

Applications:

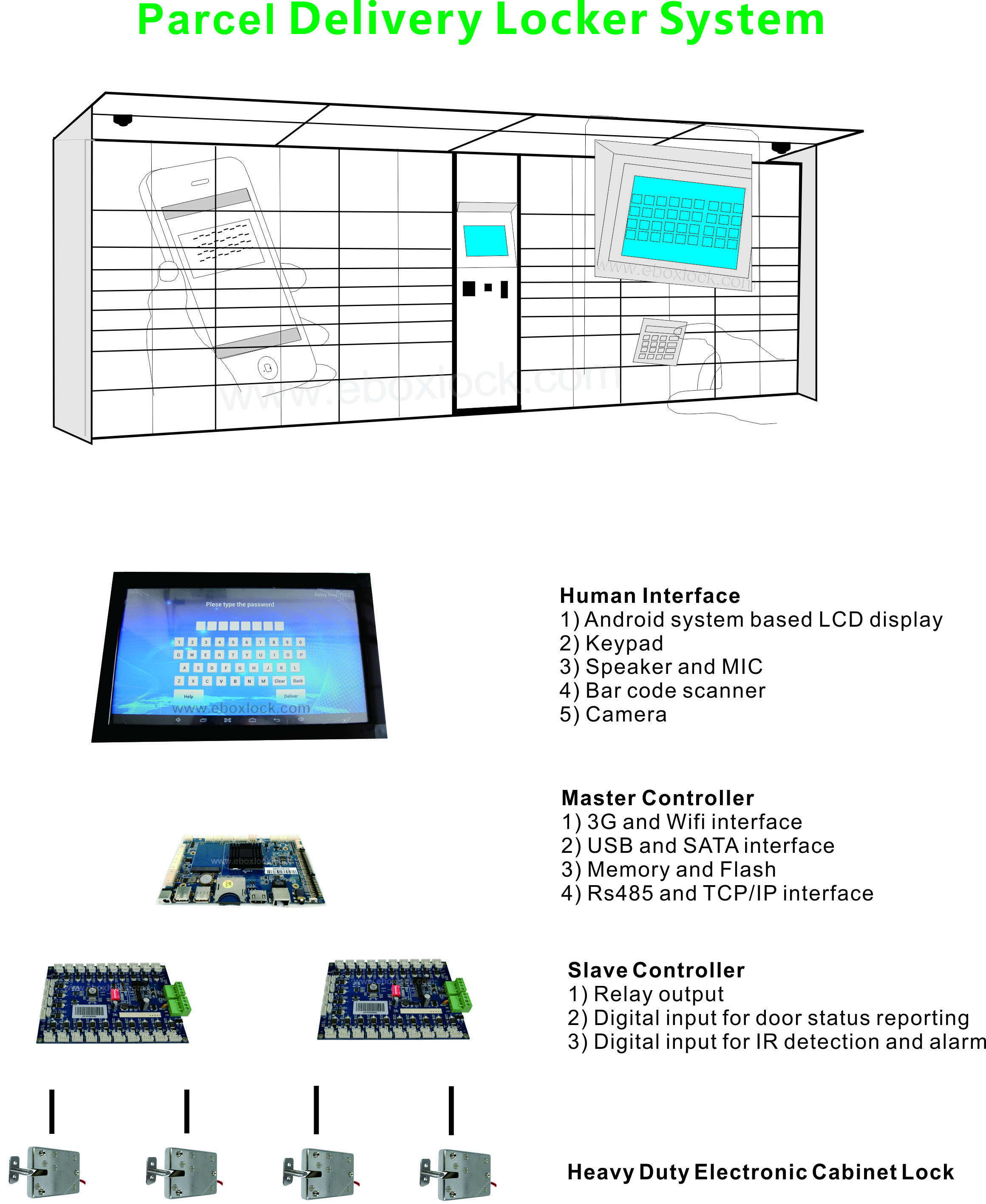

The Electronic Parcel Delivery System is ideal for various applications as following:

Electronic Parcel Lockers

Refrigerated Electronic Locker System
