Parcel Delivery Locker Controller with RS485
AL2448
Features:
§ Interface to PC via RS485
§ Supports up to 24 electronic locker locks
§ Extendable up to 968 channels
§ Allows door status reporting
§ Power supply of locker locks
Specification:
|
Operation Voltage |
12-24VDC |
|
Power Consumption |
30W |
|
Max Load Per Channel |
4A |
|
Frequency |
13.56MHAZ |
|
Communication rate |
9.6Kbps |
|
Data reserve time |
10 years |
|
Working Temperature |
-10ºC ~ +80ºC |
|
Working Humidity |
10%-90%R.H |
|
86kpa-106kpa |
|
|
Dimensions LxWxH |
200mm*170mm*32mm |
Applications:
The Electronic Parcel Delivery System is ideal for various applications as following:
Electronic Parcel Lockers
Parcel Delivery Lockers
Biometric lockers
Vending lockers
Refrigerated Electronic Locker System
RFID lockers
Bar code lockers
Fingerprint lockers
|
NO. |
Particular |
|
1 |
AM8046 master controller |
|
2 |

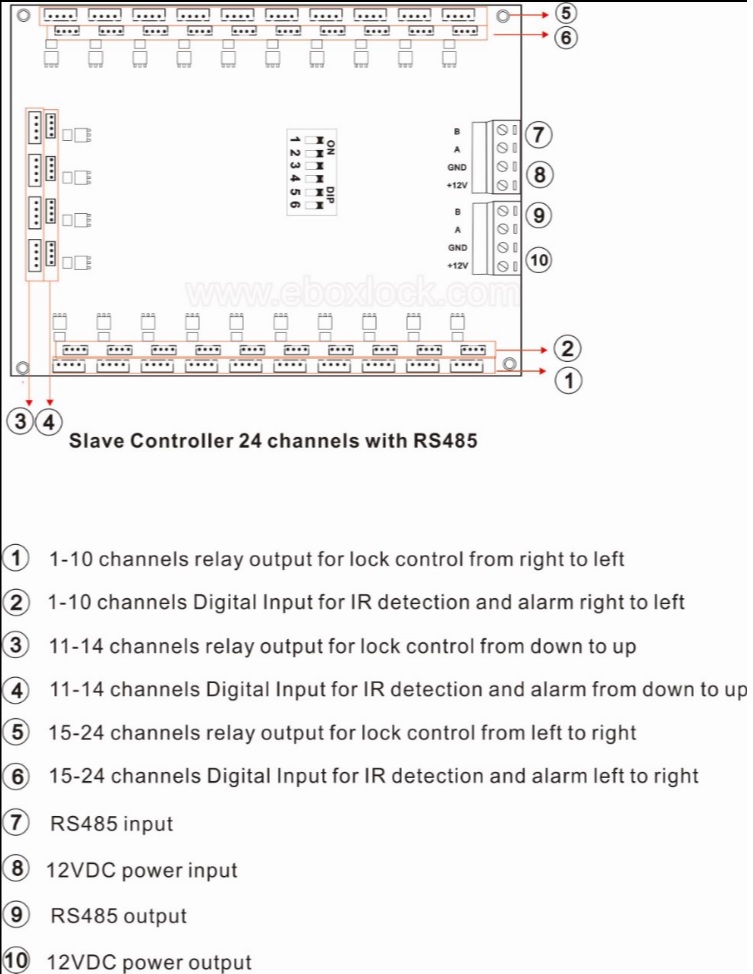

AL2445 slave controller |
|
3 |
15.6 LCD screen |
|
4 |
IR detection module |
|
5 |
Barcode scanner module |
|
6 |
Electronic cabinet lock |
|
7 |
4x4 matrix keypad |
