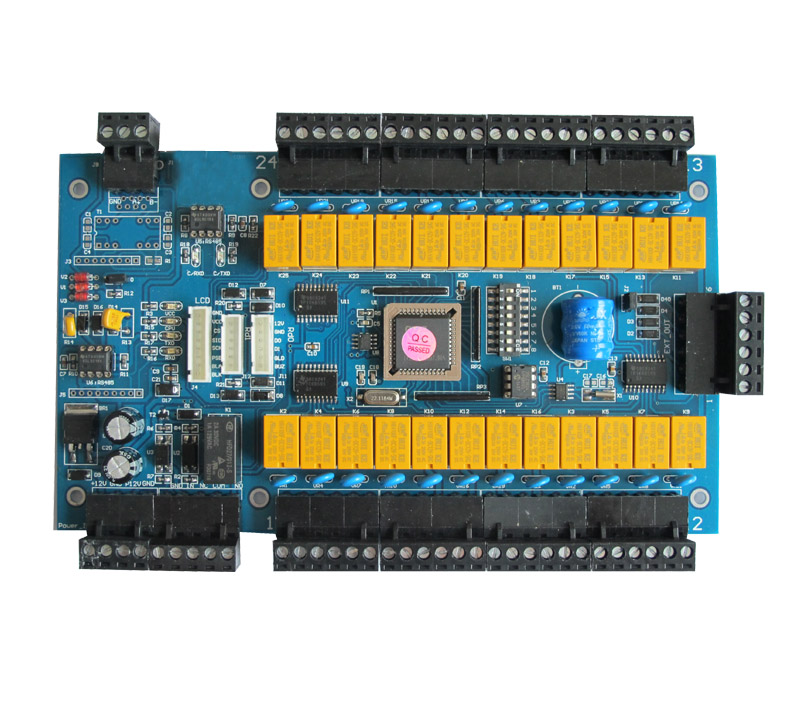

Electronic Cabinet Locker Master Controller 24 Channels 3A AM2401 is a powerful controller designed for electronic locker system for self-service deposit and pick up. By connecting to slave controller, the system can be expanded to 120 channels. The electronic locker system allows LCD screen display, RFID reader and keypad.

Features

§  Provide 24x3A relay outputs

§  Extendable up to 4 slave controllers and control max 120 cabinets.

§  Support 2 IC/ID readers, keypad and LCD screen

§  Memory for 1 master codes, 2 admin codes, 3 master cards, 600 user cards and 6960 records

§  Allows valid time for cabinet use, 3 time period with password

§ Supports multi work mode: card, card or password, card with password and double cards

§  Interface for connection with slave board

§  Built in Fire alarm terminals, emergency door release in case of fire alarm

Specification:

Applications:

The Electronic Locker System is ideal for various applications as following:

Electronic Parcel Lockers

Parcel Delivery Lockers

Biometric lockers

Vending lockers

Refrigerated Electronic Locker System

RFID lockers

Bar code lockers

Fingerprint lockers

Free access lockers

Rental lockers
