Home >> Products >> Access Control System >> Electronic Locker System>>Master Controller 48CH Standalone

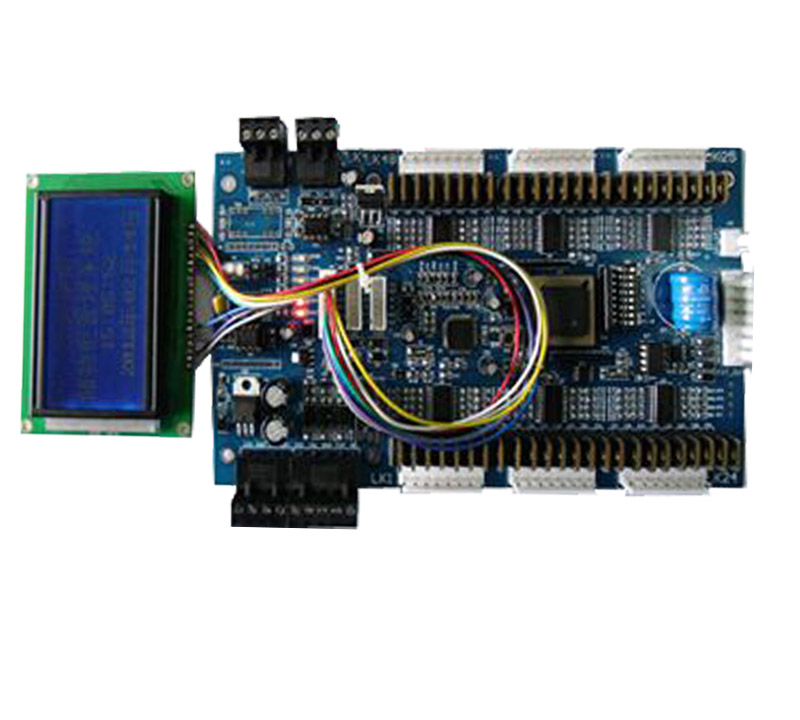

Master Controller 48CH Standalone
AM4801
Electronic Cabinet Locker Master Controller 48 Channels 3A AM4801 is a powerful controller designed for electronic locker system for self-service deposit and pick up. By connecting to slave controller, the system can be expanded to 336 channels. The electronic locker system allows LCD screen display, keypad and RFID reader.
Features
§ Provide 48x3A relay outputs
§ Extendable up to 6 slave controllers and control max 336 cabinets.
§ Support 2 IC/ID readers, keypad and LCD screen
§ Memory for 1 master code, 1 advance admin code, 1 master card, 3 admin cards, 2028 user cards and 5461 records.
§ Allows valid time for cabinet use, 3 time period with password.
§ Supports multi work mode: card, card or password, card with password and double cards.
§ Built in Fire alarm terminals, emergency door release in case of fire alarm
Specification:
|
Operation Voltage |
12VDC |
|
Power Consumption |
Less than 200mA |
|
Max Load Per Channel |
3A |
|
User capacity |
1000 Users |
|
Working Temperature |
0ºC ~ +70ºC |
|
Working Humidity |
10%-90%R.H |
|
86kpa-106kpa |
|
|
Dimensions LxWxH |
203mm*117mm*20mm |
|
Gross Weight |
0.5kg |
Applications:
The Electronic Parcel Delivery System is ideal for various applications as following:
Electronic Parcel Lockers
Parcel Delivery Lockers
Biometric lockers
Vending lockers
Refrigerated Electronic Locker System
RFID lockers
Bar code lockers
Fingerprint lockers
Free access lockers
Rental lockers
