Slave Controller 48CH
AL4801
Description
Images

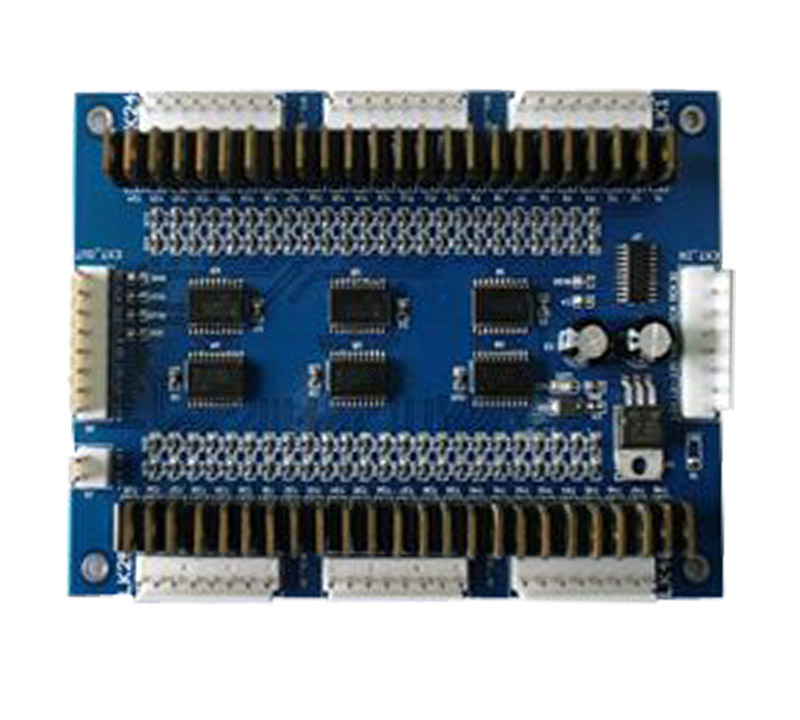

Electronic Cabinet Locker Slave Controller 48 Channels 3A AL4801 is a relay board for electronic locker system. By connecting to master controller, the slave controller works as an extension for system requesting more than 48 channels. Maximum 6 slave controllers are allowed for each standalone lock system. AL4801 can’t work alone, it is powered by the master controller and all actions stored in the master.
Features
§ Provide 48x3A relay outputs
§ Extendable up to 6 slave controllers for each locker system
§ Powered by master controller

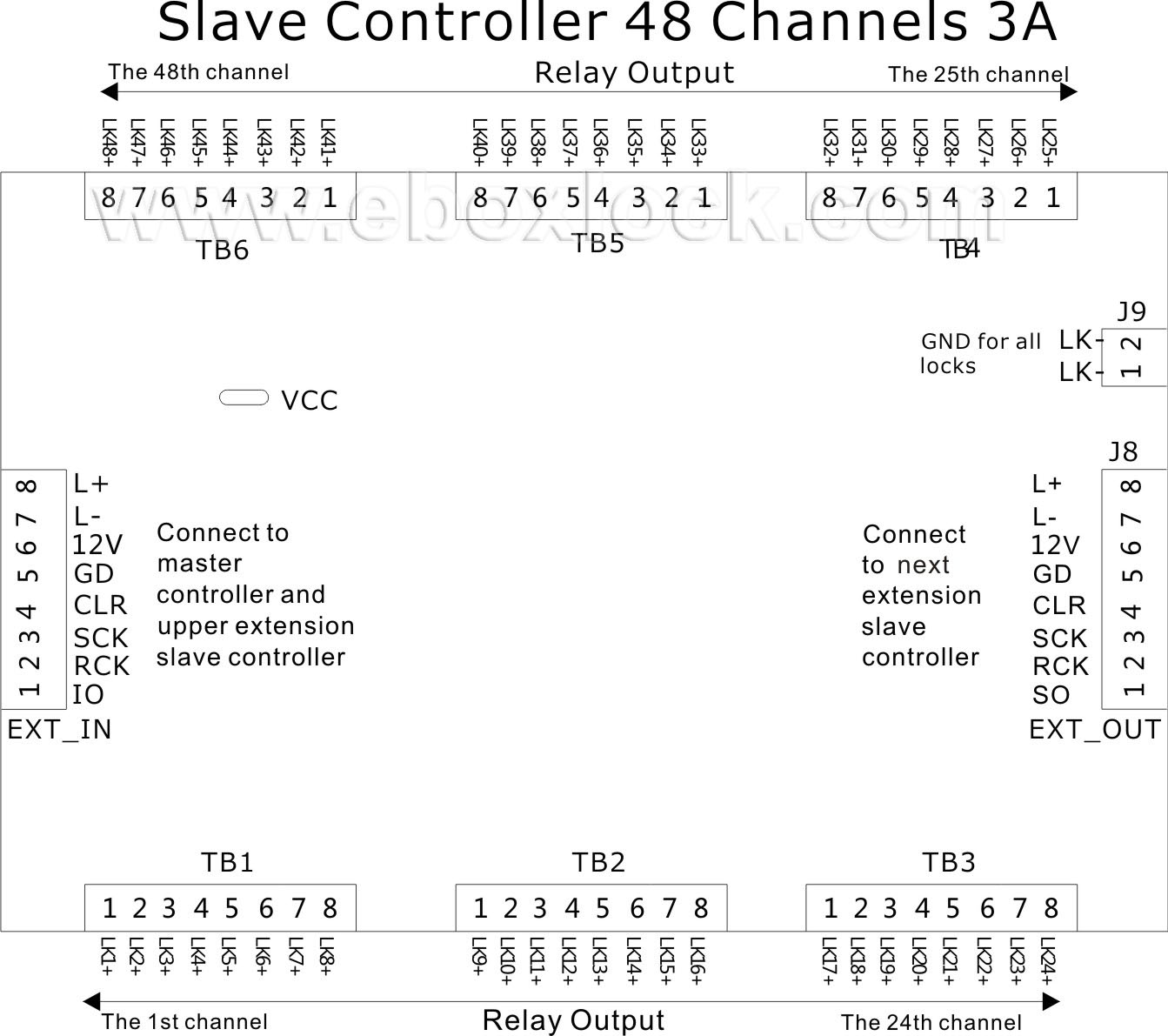

§ Interface for connection with other slave controllers
Specification:
|
Operation Voltage |
12VDC |
|
Power Consumption |
Less than 200mA |
|
Max Load Per Channel |
3A |
|
Working Temperature |
0ºC ~ +70ºC |
|
Working Humidity |
10%-90%R.H |
|
86kpa-106kpa |
|
|
Dimensions LxWxH |
203mm*117mm*20mm |
|
Gross Weight |
0.5kg |
Applications:
The Electronic Parcel Delivery System is ideal for various applications as following:
Electronic Parcel Lockers
Parcel Delivery Lockers
Biometric lockers
Vending lockers
Refrigerated Electronic Locker System
RFID lockers
Bar code lockers
Fingerprint lockers
Free access lockers
