RFID Cabinet Lock/Double Door Lock
CMA928

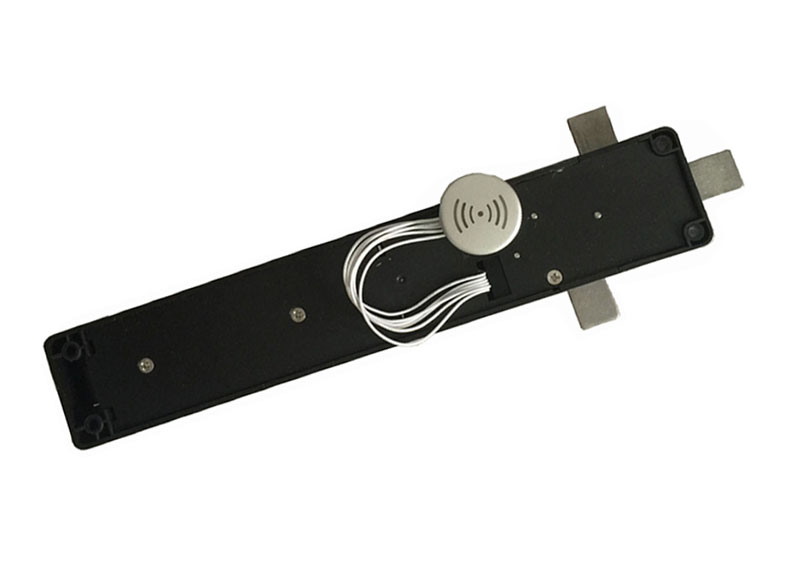

RFID Lock (CMA928) is ideal for double door cabinet. The double door cabinet lock is featured mini RFID reader and slim lock body.
Both EM card and Mifare card are available. The RFID Double Door Cabinet Lock (CMA928) is energy saving, cost efficient, easy to install and suitable for one or multiple drawer cabinet applications.
Features:
Ÿ EM card and Mifare card are available
Ÿ Easy installation
Ÿ Tamper guard for battery replacement or unauthorized unlock
Specification:
|
Operation Voltage |
DC6V( AAA1.5V*4) alkaline battery |
|
Static current |
<15mA |
|
Dynamic current |
<150mA |
|
Operation Mode |
Fail Locked |
|
Alarm power |
< 4.7V |
|
Cycle Rating |
More than 10,000 times |
|
Anti-Static Electricity |
Air discharge 15KV,Contact discharge 8KV |
|
Working Temperature |
-15ºC ~ +65ºC |
|

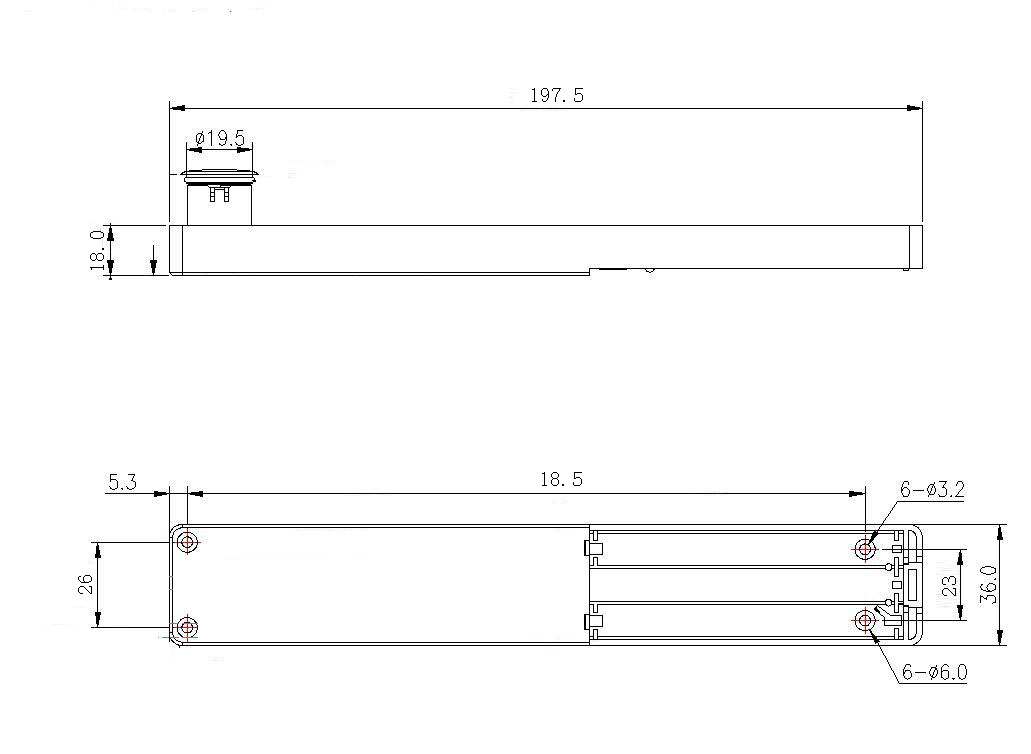

Cylinder Dimension LxWxH |
197mm*36mm*29mm |
|
Weight |
250g |
|
Protection Class |
IP20 |
