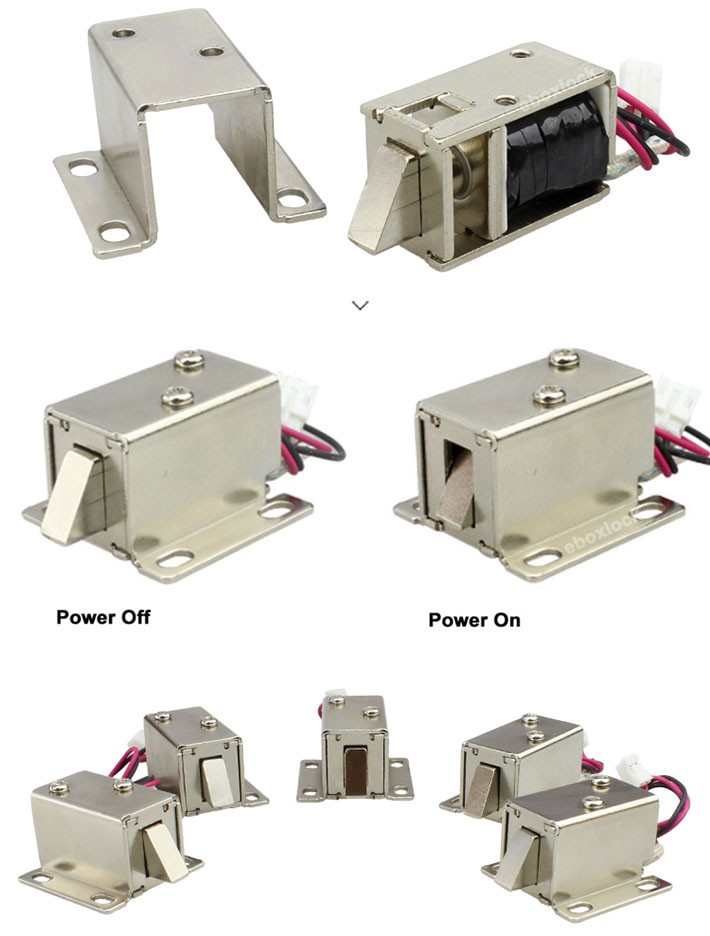

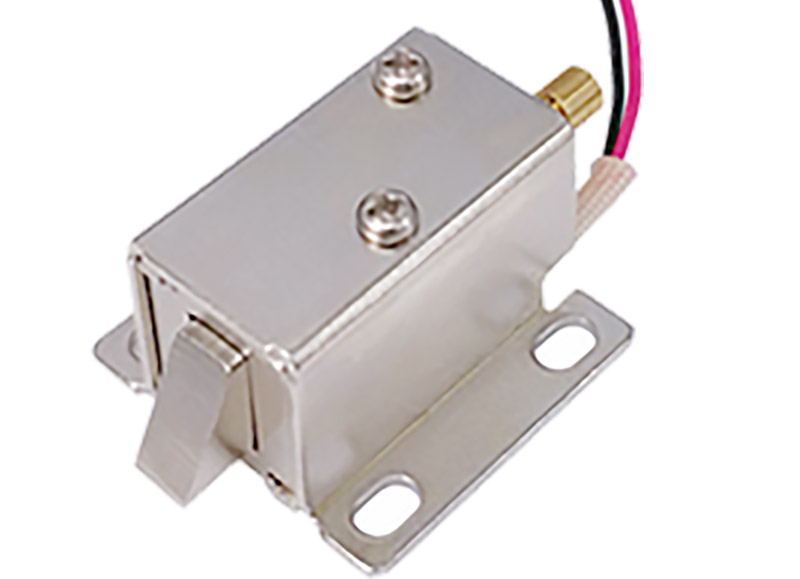

Super Mini Solenoid Lock With Override
MA1206ML

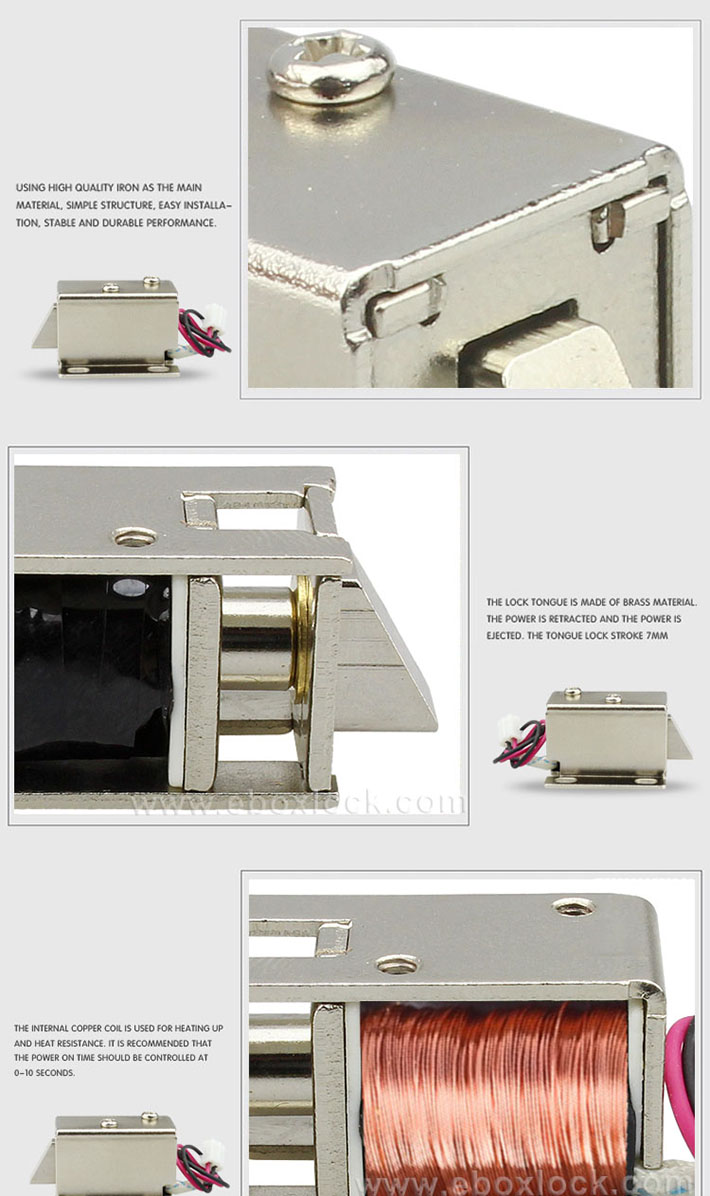

The MA1206ML is an ultra-compact, all-metal electric solenoid lock engineered for keyless entry applications in cabinets, drawers, lockers, and mailboxes. Despite its miniature footprint, it delivers robust security and reliable performance in space-constrained installations.
Feature:
- Reversible bolt for up and down
- With manual override for emergency unlock
- Surface-mounted compact electric lock
- Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
- Can be fitted to locker, mail box and drawers etc
|
Operation Voltage: |
12VDC ±10% intermittent |
|
Power Consumption: |
0.43A(at DC12V |
|
Wattage: |
5W |
|
DC Resistance |
28Ω±10% (at |
|
Duty Cycle |
cycle 25% |
|
Max Power On |
25 Seconds |
|
Operation Mode: |
Fail Locked |
|
Insulation Class |
B Class |
|
Length of tongue: |
6.7mm |
|
Stroke: |
4mm |
|
Cycle Rating: |
300,000 times |
|
Force |
≥300gf@Stroke 0mm ≥80gf@Stroke 5mm |
|
Working Temperature: |
-5ºC ~ +55ºC |
|
Dimensions LxWxH: |
28mm*27mm*29mm |
Order particular
|
Part No |
Operating Current |
Bolt Slide |
Manual override |
Maximum Power on |
Operation Interval |
|
MA1206M |
6VDC@1A |
Up |
without |
2 seconds |
|
|
MA1206M |
6VDC@1A |
Down |
without |
2 seconds |
|
|
MA1206M |
12VDC@0.43A |
Up |
without |
4 seconds |
|
|
MA1206M |
12VDC@0.43A |
Down |
without |
4 seconds |
60 seconds |
|
MA1206N |
12VDC@1.33A |
Up |
without |
2 seconds |
|
|
MA1206M |
12VDC@1.33A |
Down |
without |
2 seconds |
|
|
MA1206ML |
12VDC@0.43A |
Up |
with |
2 seconds |
|
