Electric Bolt Lock for Cabinet and Drawer
MA1206R
Description
Images

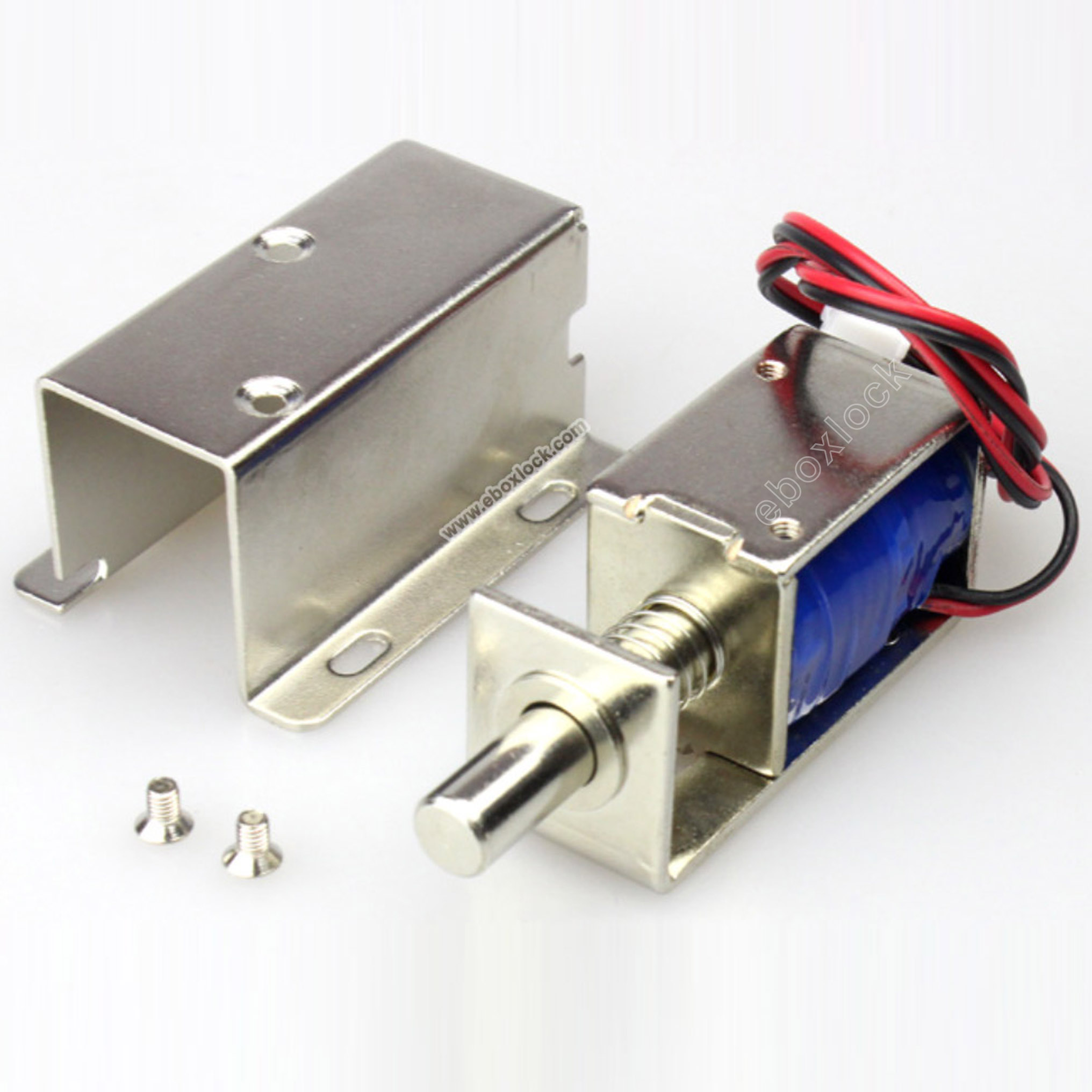

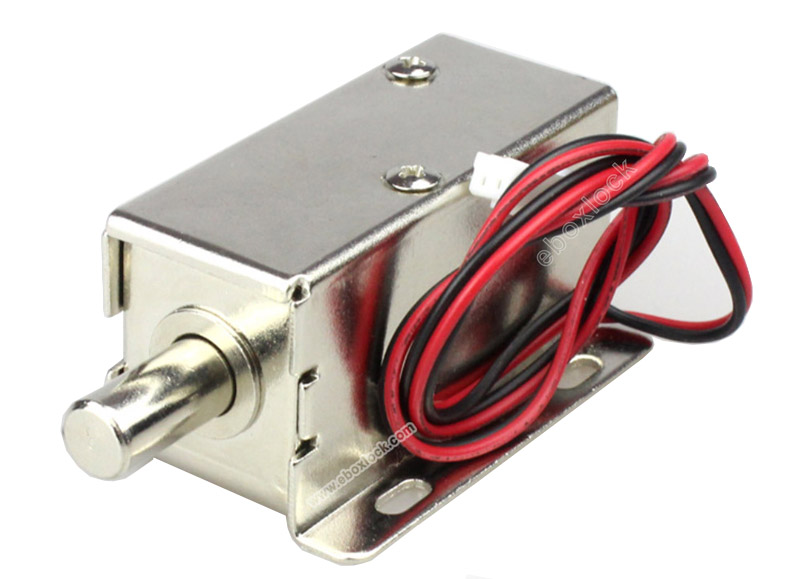

The Electric Solenoid bolt lock MA1206R is a compact and metal constructed lock for cabinets, drawers and lockers. Surface mounting either vertically or horizontally offers easy and flexible installation, the cabinet Lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The electronic Cabinet Lock (MA1206R) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.

Features:

Ÿ   Superior heavy duty metal construction

Ÿ   Nickel-plated steel housing­

Ÿ   Surface-mounted compact electric lock

Ÿ   Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,

Ÿ   Can be fitted to locker, mail box and drawers etc


Specification:

Operation Voltage:

12VDC ±10%

Power Consumption:

12V DC   830mA

Operation Mode:

Fail Locked

Length of tongue:

10mm

Cycle Rating:

More than 600,000

Holding Force

150kg

Working Temperature:

-20ºC ~ +60ºC

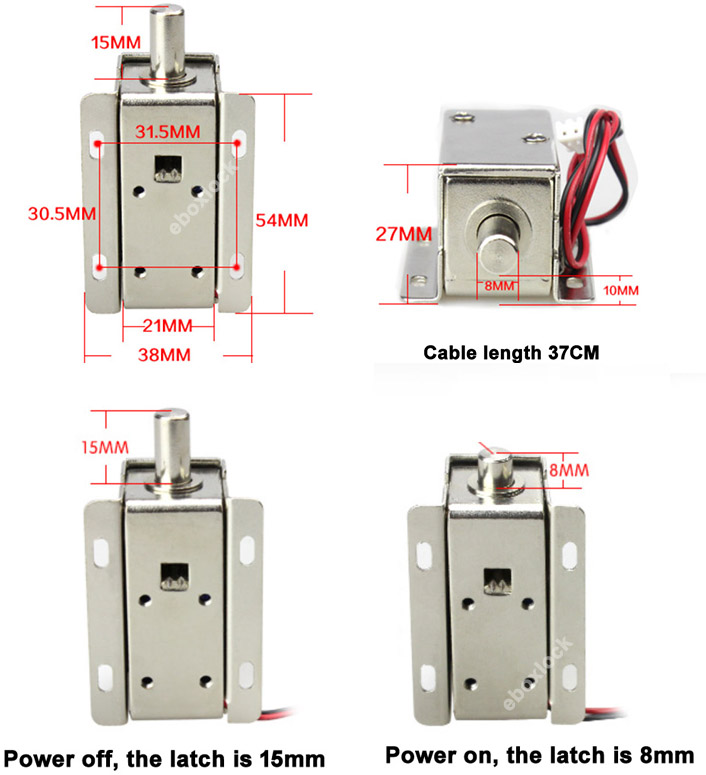

Dimensions LxWxH:

54mm*42mm*28mm

Net Weight:

150g

Protection Class:

IP20

Certificate

CE, ROHS ISO9001


Order Particular:

Model no.

Operation

Voltage

Load capacity

Bolt Length

Mode

Max. power on

Operation

MA1206-R103

12VDC 0.3A

0.1kg

9.3mm

Continuous

Continuous

Fail safe

MA1206-R117

24VDC 0.17A

0.1kg

9.3mm

Continuous

Continuous

Fail safe

MA1206-R110

12VDC 0.83A

0.2kg

10mm

Intermittent

10 seconds

Fail secure

MA1206-R150

12VDC 0.83A

0.2kg

15mm

Intermittent

10 seconds

Fail secure

MA1206-R170

12VDC 0.83A

0.2kg

17mm

Intermittent

10 seconds

Fail secure
