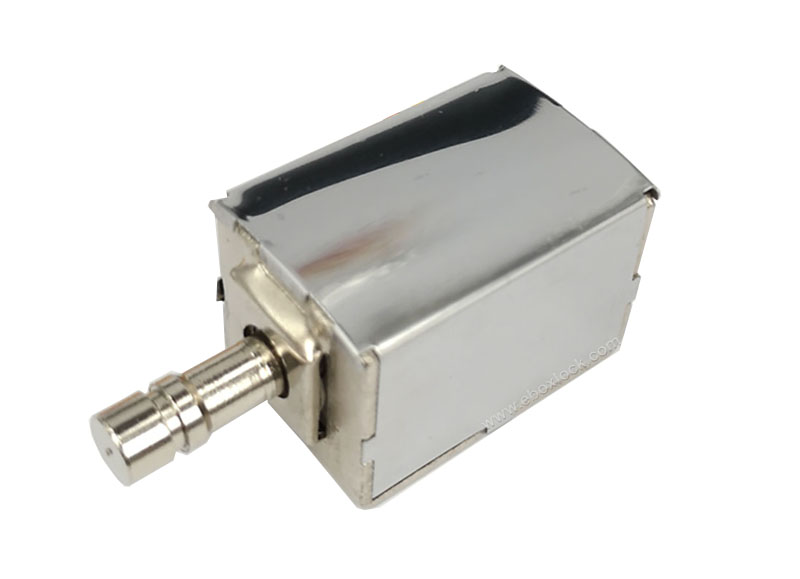

Electric Bolt Lock for Cabinet and Drawer
MA1116
Electric Bolt Lock MA1116 is a compact and all-metal lock ideal for cabinets, drawers and lockers.
Features：
Ÿ Surface-mounted compact electric lock
Ÿ Stainless steel housing
Ÿ Symmetry design enable versatile installation and low install cost
Specifications：
|
Operation Voltage: |
12VDC ±10% |
|
Power Consumption: |
12V DC 2000mA |
|
Operation Mode: |
Fail Locked |
|
Length of tongue: |
10mm |
|
Cycle Rating: |
More than 600,000 |
|
Working Temperature: |
-20ºC ~ +60ºC |
|
Dimensions LxWxH: |
62mm*27mm*29mm |
|
Net Weight: |
150g |
|
Protection Class: |
IP20 |
Order particular：
|
Part No |
Operating Current |
Bolt length |
Manual override |
Housing |
Dimension |
|
MA1206 |
12VDC@600mA |
10mm |
without |
with |
64*40*28mm |
|
MA1206A |
12VDC@1000mA |
10mm |
without |
with |
64*40*28mm |
|
MA1206H |
12VDC@1000mA |
19.5mm |
without |
with |
73.5*40*28mm |
|
MA1206L |
12VDC@1000mA |
10mm |
with |
with |
91*40*28mm |
|
MA1206N |
12VDC@1000mA |
10mm |
without |
without |
64*40*28mm |
|
MA1206M |
12VDC@400mA |
6.7 mm |
without |
with |
28*27*19mm |
|
MA1206ML |
12VDC@400mA |
6.7 mm |
with |
with |
28*27*19mm |
|
MA1206R |
12VDC@1200mA |
15mm |
without |
with |
38*54*27mm |
