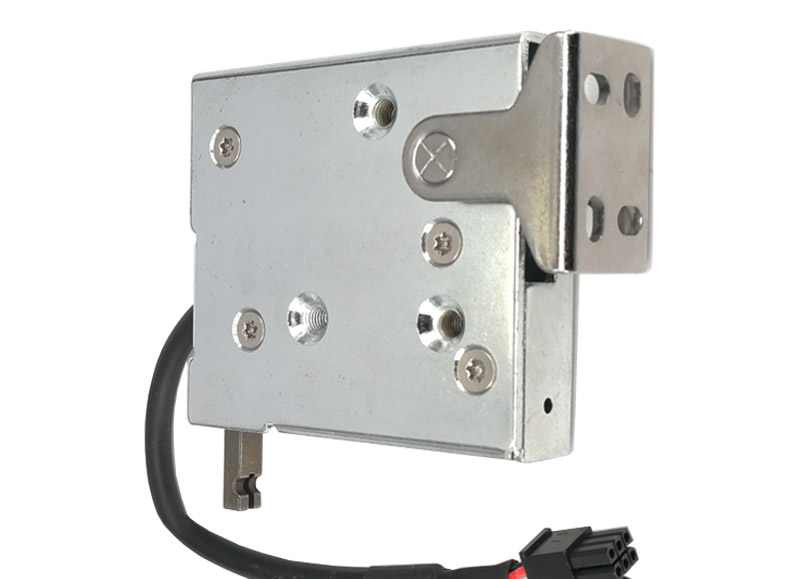

Heavy Duty Electric Cabinet Lock with Reporting and Manual Override
MD1220LS

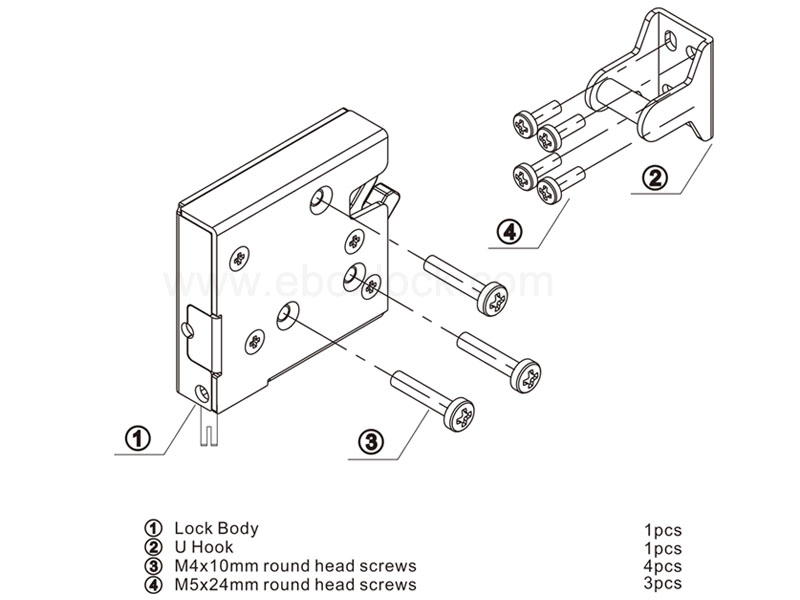

Surface mounting either vertically or horizontally offers easy and flexible installation. The cabinet lock is compatible with any access control system or standalone cabinet locking. With easy push-to-close operation, the lock is designed with internal spring rod to push door open when electrified. It simplifies the access control of enclosures in a wild variety of applications.
Features:
- Superior heavy duty metal construction
- Chrome-plated steel housing
- Surface-mounted compact electric lock
- Convenient mechanical override enables manual release during power failure
- Operates against heavy mechanical load
- Optional internal microswitch for latch open/close output signal
- Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers
Specifications:
|
Operation Voltage: |
12/24VDC intermittent ±10% |
|
Power Consumption: |
12V DC 2000mA |
|
Operation Mode: |
Fail Locked |
|
Solenoid Type: |
Intermittent |
|
Max. Power on: |
1 second |
|
Holding Force: |
600KG |
|
Cycle Rating: |
More than 1,000,000 |
|
MS Contact Rating: |
5A @125V |
|
Working Temperature: |
-20ºC ~ +60ºC |
|
Dimensions LxWxH: |
72mm*67mm*18mm |
|
Weight: |
330g |
|
Protection Class: |
IP20 |
Part No.
|
Part No |
Operating Current |
Micro switch |
Manual Override |
Construction |
|
MD1215 |
12VDC@1500mA |
Without |
Hidden |
Steel |
|
MD1215S |
12VDC@1500mA |
With |
Hidden |
Steel |
|
MD1215L |
12VDC@1500mA |
Without |
Exposed |
Steel |
|
MD1215LS |
12VDC@1500mA |
With |
Steel |
|
|
MD1220 |
12VDC@2000mA |
Without |
Hidden |
Steel |
|
MD1220S |
12VDC@2000mA |
With |
Hidden |
Steel |
|
MD1220L |
12VDC@2000mA |
Without |
Exposed |
Steel |
|
MD1220LS |
12VDC@2000mA |
With |
Exposed |
Steel |
|
MD1215H |
12VDC@1500mA |
Without |
Hidden |
Stainless S. |
|
MD1215SH |
12VDC@1500mA |
With |
Hidden |
Stainless S. |
|
MD1215LH |
12VDC@1500mA |
Without |
Exposed |
Stainless S. |
|
MD1215LSH |
12VDC@1500mA |
With |
Exposed |
Stainless S. |
|
MD1220H |
12VDC@2000mA |
Without |
Hidden |
Stainless S. |
|
MD1220SH |
12VDC@2000mA |
With |
Hidden |
Stainless S. |
|
MD1220LH |
12VDC@2000mA |
Without |
Exposed |
Stainless S. |
|
MD1220LSH |
12VDC@2000mA |
With |
Exposed |
Stainless S. |
|
MD1215P |
12VDC@1500mA |
Without |
Hidden |
Water proof |
|
MD1215SP |
12VDC@1500mA |
With |
Hidden |
Water proof |
|
MD1215LP |
12VDC@1500mA |
Without |
Exposed |
Water proof |
|
MD1215LSP |
12VDC@1500mA |
With |
Exposed |
Water proof |
|
MD1220P |
12VDC@2000mA |
Without |
Hidden |
Water proof |
|
MD1220SP |
12VDC@2000mA |
With |
Hidden |
Water proof |
|
MD1220LP |
12VDC@2000mA |
Without |
Exposed |
Water proof |
|
MD1220LSP |
12VDC@2000mA |
With |
Exposed |
Water proof |
We offer customization for cable length and connector type to meet the exact requirement of your application.
Application
- Vending machine
- Electronic locker
- Van door
- Gun or weapon cabinets
- Bike or scooter station
- Utility cabinets and drawers
- Museum display cases
