Digital Keypad Lock for Cabinet
CMA125
Description
Images

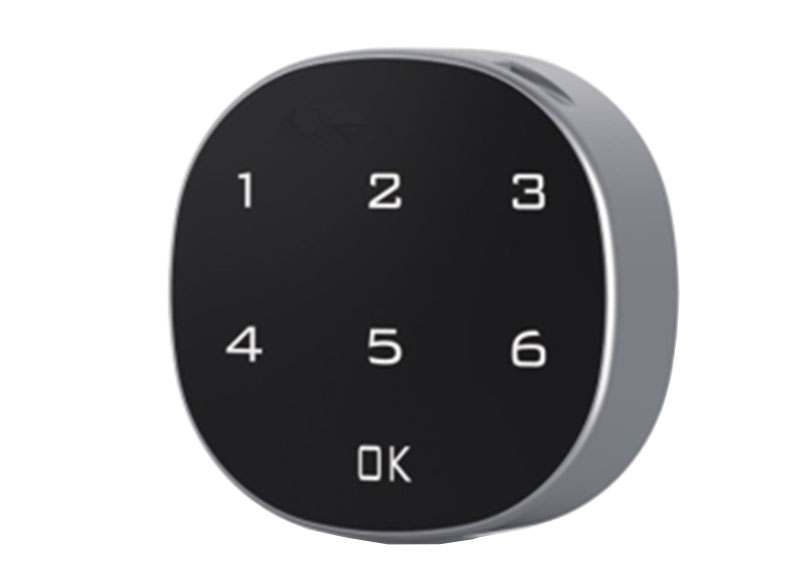

Digital Keypad Lock for Cabinet (CMA125) is a cabinet lock with touch keypad, which is ideal for cabinets, drawers and lockers. The lock allows temporary users or permanent users to secure their items. LED indicator shows on-time operation status. Surface mounting offers easy installation. The Keypad Cabinet Lock (CMA126) is energy-saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications for household or business: supermarket, gym, club, library and factory.
Features
§ LED indicator indicates operation status
§ Able to be programmed for both temporary or permanent usage
§ Low battery indicator
§ Password protection: allows input continuous code includes the correct password to open the door
§ Auto-alarm will be activated when input wrong password
§ Able to input special code for public and private mode conversion
§ Allows external power supply in case the battery power runs out
Specification
|
Operation Voltage |
DC4.5V( AAA1.5V*3) alkaline battery |
|
Operation Mode |
Fail Locked |
|
Alarm power |
< 3.3V |
|
Cycle Rating |
More than 10,000 times |
|
Working Temperature |
-10ºC ~ +55ºC |
|

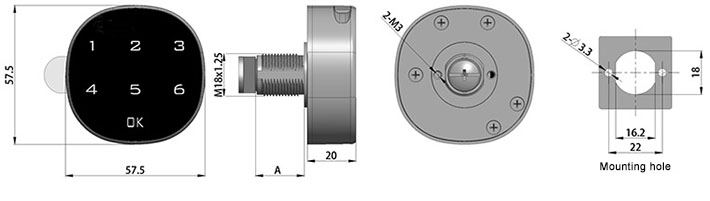

Dimension LxWxH |
57.5mm*57.5mm |
|
Weight |
300g |
|
Protection Class |
IP20 |
