Electronic Keypad Cabinet Lock
CMA921
Description
Images

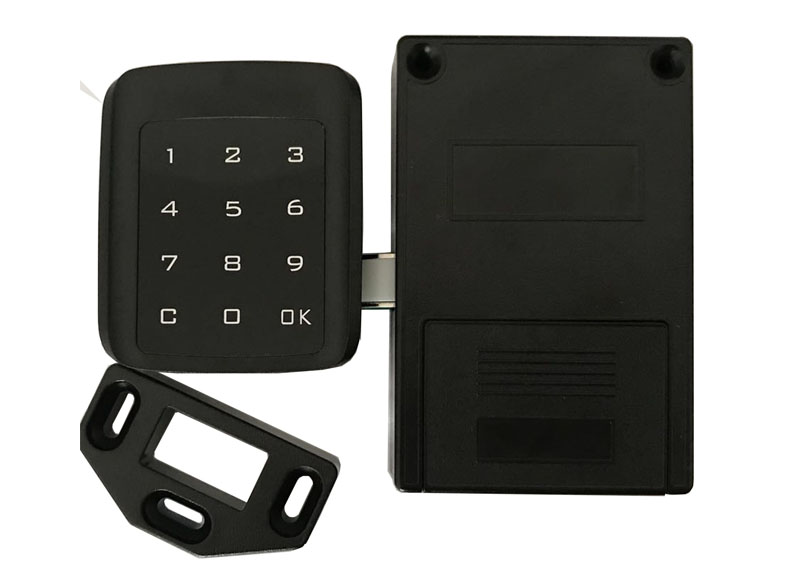

Electronic Keypad Cabinet Lock (CMA921) is a cabinet lock with touch keypad, which is ideal for cabinets, drawers and lockers. The keypad system allows temporary users or permanent users to secure their items. The cabinet lock is featured by multi-level password management and tamper guard. LED indicator shows on-time operation status. Surface mounting offers easy installation. The Keypad Cabinet Lock (CMA921) is energy-saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications for household or business: supermarket, gym, club, library and factory.
Features
§ LED indicator indicates operation status
§ Able to be programmed for both temporary or permanent usage
§ Integrated pull for easy access
§ Low battery indicator
§ Password protection: allows input continuous code includes the correct password to open the door
§ Able to input special code for public and private mode conversion.
§ Allows external power supply in case the battery power runs out
Specification
|
Operation Voltage |
DC4.5V( AAA1.5V*3) alkaline battery |
|
Operation Mode |
Fail Locked |
|
Alarm power |
< 3.3V |
|
Cycle Rating |
More than 10,000 times |
|
Working Temperature |
-10ºC ~ +55ºC |
|

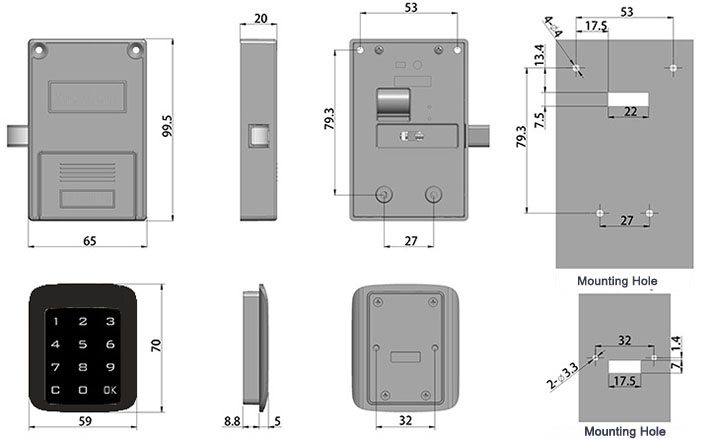

Panel Dimension LxWxH |
70mm*59mm*8.8mm |
|
Cylinder Dimension LxWxH |
99.5mm*65mm*20mm |
|
Weight |
300g |
