Locker Electonic Keypad Lock with Pull
CMA937
Description
Images

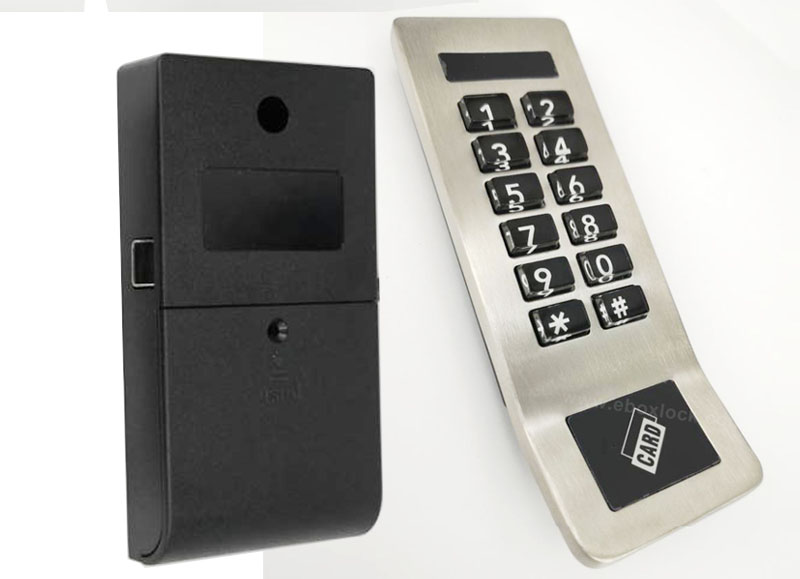

Locker Electronic Keypad Lock with Pull (CMA937) is a compact electronic cabinet lock with keypad, which is ideal for cabinets, drawers and lockers. The pull on the device allows for easier access. The keypad system allows temporary users or permanent users to secure their items.. The cabinet lock is featured by multi-level password management and tamper guard. LED indicator shows on-time operation status. Surface mounting offers easy installation. The Keypad Cabinet Lock (CMA937) is energy-saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications for household or business: supermarket, gym, club, library and factory.
Features
§ Three levels password management, master code, jump code and user code.
§ LED indicator indicates operation status
§ Able to be programmed for both temporary or permanent usage
§ Integrated pull for easy access
§ Low battery indicator
§ Password protection: allows input continuous code includes the correct password to open the door
§ Able to input special code for public and private mode conversion.
Specification
|
Operation Voltage |
DC4.5V( AA1.5V*3) alkaline battery |
|
Operation Mode |
Fail Locked |
|
Alarm power |
< 3.3V |
|
Cycle Rating |
More than 10,000 times |
|
Working Temperature |
-10ºC ~ +55ºC |
|

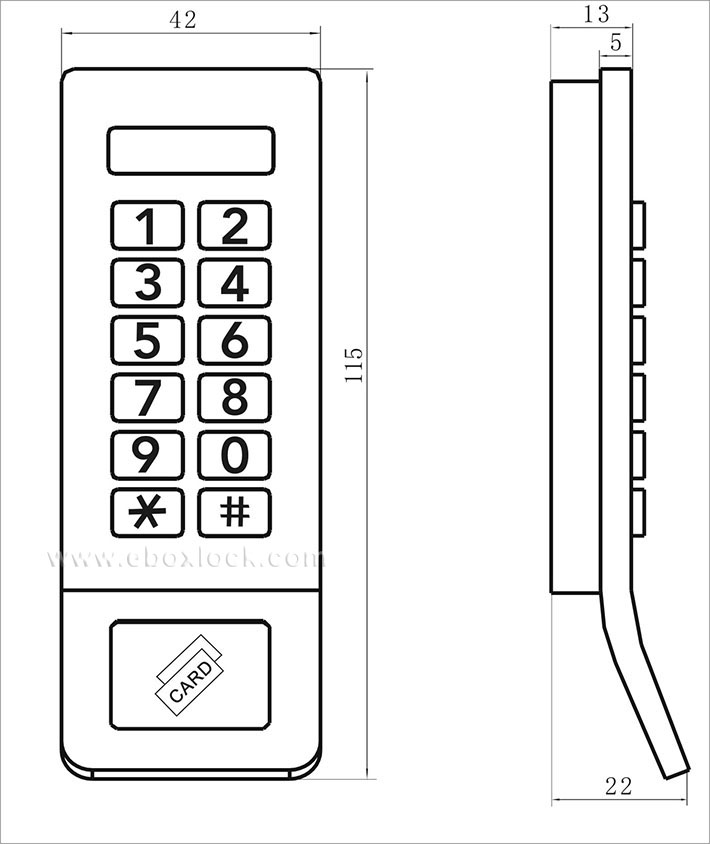

Panel Dimension LxWxH |
115mm*42mm*13mm |
|
Cylinder Dimension LxWxH |
125mm*65mm*20mm |
