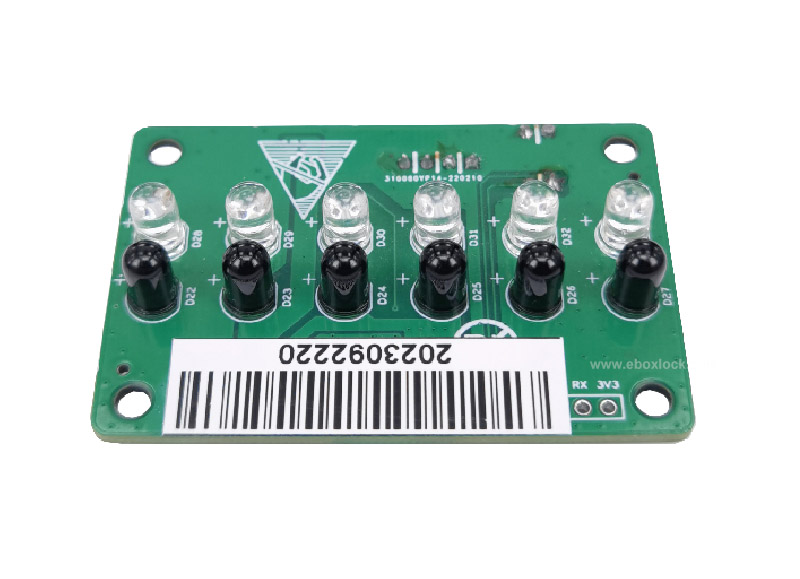

Infrared Object Detector With 6 Sensors
VHOP40-640
Description
Images
IR sensor VHOP40-0630 is designed with emtter and receiver in one for object detection and counting. Once the product passes through the sensor, it will trigger detetion and counting. The Infrared sensor, when used in object detection in vending machines, parking lots, ATMs, and more, ensure that goods dispenses or delivery status.
The IR detector, attached to the underside of the delivery chute, sends a signal to the microcontroller when a product hits the delivery chute. It includes IR emitter and receiver for covering up to 1 meter. The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sun light; even transparent item can be detected.
Features:
- Working voltage ranges 10V-32V
- High intensity of IR sensor for efficient detection
- Multiple sensitivity levels for different applications.
- Immune from sunlight
- Able to detect transparent object..
- Compact size for hidden installation.
- Compatible with all types of vending machines
- Able to customize for size and sensitivity
Specifications:
| Operation Voltage | 12/24VDC±10% |
| Operation Current | 160/80mA |
| Standby consumption TX | 1.6-2.5W |
| Standby consumption RX | <1W |
| Digital output LOW | 200-400mV |
| Digital output HIGH | 2-3.6V(Customized) |
| EM WL | 940nm |
| PS WL | 700-1100NM |
| Offset angle | Less than 15 degrees |
| Offset Range | Less than 2cm within 1m |
| Detection range | Less than 1.5m |
| Working Temperature | -40C ~ +70C |
| Gross weight: | 0.3kg |
We offer various Drop sensors for object fall detection of vending machine, please contact for more detail.
Order Particulars:
| Model No. | IR emitters/ Receivers Qty | Size(mm) | Interval (mm) |
| VHOP40-2424 | 24 | 240X33 | 10 |
| VHOP40-1617 | 16 | 171.4x14 | 11 |
| VHOP40-1532 | 15 | 307.6x32.7 | 22 |
| VHOP40-1214 | 12 | 130x32.7 | 11 |
| VHOP40-932 | 9 | 94.4 x 32.7 | 11 |
| VHOP40-640 | 6 | 60 x 40 | 10 |
