Home >> Products >> Electric Locks >> Waterproof Electric Locks>>Electric Magnetic Lock with Latch and Door Status,Waterproof IP67

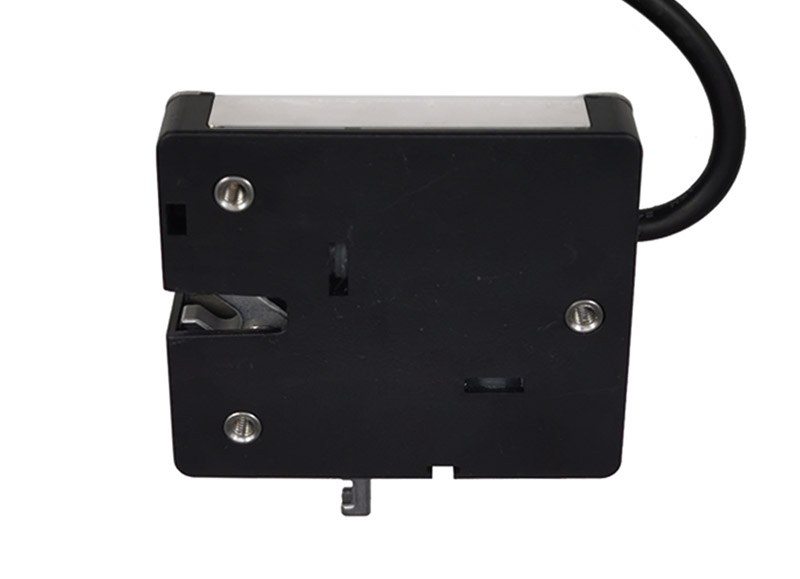

Electric Magnetic Lock with Latch and Door Status,Waterproof IP67
DJ7-LS2
Features：
l Tough metal/ABS construction, optional stainless steel
l Water proof concealed mechanism
l Optional internal microswitches for latch& door status
l Optional noise reduction version for indoor use
l Convenient mechanical override enables manual release during power failure
l Three-bolt regular triangle mounting enables high security and low install cost
l Accepts access control signals from wireless RF key fobs or proximity cards, numeric keypads, card readers,
l Can be fitted to outdoor locker, mail box and drawers etc
Parameters:
|
Operation Voltage: |
12/24VDC intermittent ±10% |
|
Power Consumption: |
12V DC 1500mA |
|
Max. power on: |
Less than 1 second |
|
Operation Mode: |
Fail Locked |
|
Holding Force: |
150KG |
|
Cycle Rating: |
More than 1,000,000 |
|
Working Temperature: |
-20ºC ~ +60ºC |
|

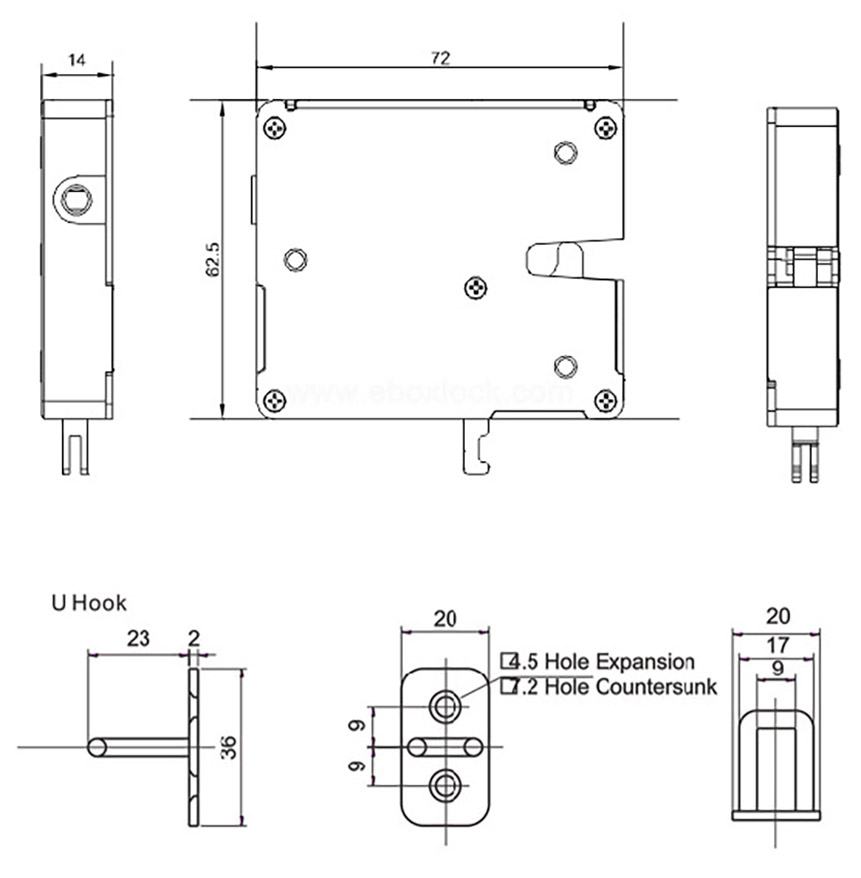

Dimensions LxWxH: |
72mm*62.5mm*14mm |
|
Weight: |
0.2kg |
|
Protection Class: |
IP67 |
|
Certificate: |
CE, ROHS,ISO9001 |
Part No.
|
Model no. |
Operation current |
Latch Status |
Door Status |
Push strength |
Mechanical override |
|
DJ7-8 |
12VDC 800mA |
Without |
Without |
4N |
Hidden |
|
DJ7-S8 |
12VDC 800mA |
With |
Without |
4N |
Hidden |
|
DJ7-S28 |
12VDC 800mA |
With |
With |
4N |
Hidden |
|
DJ7-L8 |
12VDC 800mA |
With |
Without |
4N |
Exposed |
|
DJ7-LS8 |
12VDC 800mA |
With |
Without |
4N |
Exposed |
|
DJ7-LS28 |
12VDC 800mA |
With |
With |
4N |
Exposed |
|
DJ7-15 |
12VDC 1500mA |
Without |
Without |
15N |
Hidden |
|
DJ7-S15 |
12VDC 1500mA |
With |
Without |
15N |
Hidden |
|
DJ7-S215 |
12VDC 1500mA |
With |
With |
15N |
Hidden |
|
DJ7-L15 |
12VDC 1500mA |
With |
Without |
15N |
Exposed |
|
DJ7-LS15 |
12VDC 1500mA |
With |
Without |
15N |
Exposed |
|
DJ7-LS215 |
12VDC 1500mA |
With |
With |
15N |
Exposed |
