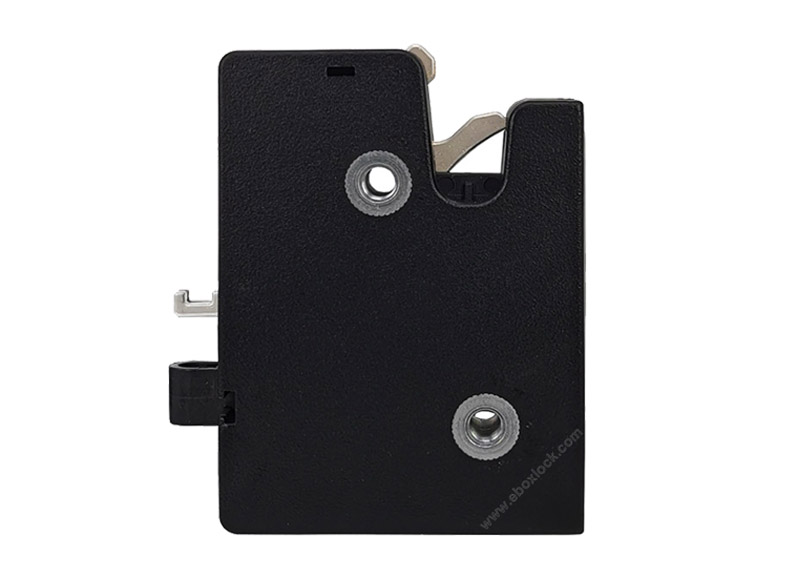

Electronic Door Latches, Dual Sensors,Override
DJ5-BST
Features:
l Low Power Consumption
l Tough metal/ABS construction, stainless steel option
l Driven by gear motor
l Operates against heavy mechanical loads
l Optional internal microswitch for reporting open/close status
l Push to lock and electronic release
l Corrosion-resistant version available for outdoor use
l High strength and durability
l Accept control inputs from any access control devices
Specifications:
|
Operation Voltage: |
12VDC ±10% |
|
Power Consumption: |
200mA |
|
Operation Mode: |
Fail Locked |
|
Max. Power On |
1 second |
|
Holding Force: |
600KG |
|
Cycle Rating: |
More than 300,000 |
|
MS Contact Rating: |
5A @125V |
|
Working Temperature: |
-20ºC ~ +60ºC |
|

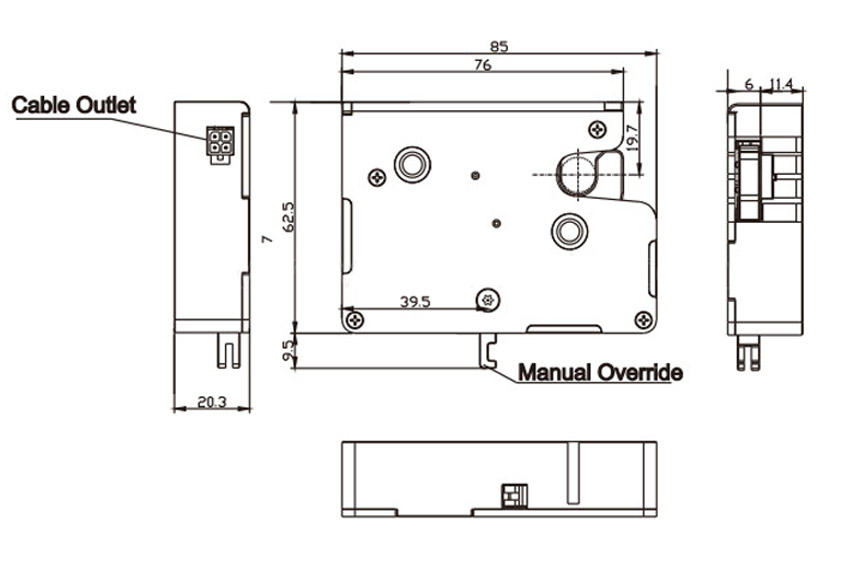

Dimensions LxWxH: |
85mm*62.5mm*20.3mm |
|
Weight: |
260g |
|
Protection Class: |
IP40 |
Part No.
|
Part No |
Strike Status |
Lock Status |
Override Bracket |
LED Lighting |
Construction |
|
DJ5-AS |
With |
Without |
Without |
Without |
Steel |
|
DJ5-AST |
With |
Without |
Without |
With |
Steel |
|
DJ5-ASH |
With |
Without |
Without |
Without |
Stainless Steel |
|
DJ5-ASHT |
With |
Without |
Without |
With |
Stainless Steel |
|
DJ5-ASF |
With |
Without |
With |
Without |
Steel |
|
DJ5-ASTF |
With |
Without |
With |
With |
Steel |
|
DJ5-ASHF |
With |
Without |
With |
Without |
Stainless Steel |
|
DJ5-ASHTF |
With |
Without |
With |
With |
Stainless Steel |
|
DJ5-BS |
With |
Without |
Without |
Without |
Steel |
|
DJ5-BS2 |
With |
With |
Without |
Without |
Steel |
|
DJ5-BSH |
With |
Without |
Without |
Without |
Stainless Steel |
|
DJ5-BS2H |
With |
With |
Without |
Without |
Stainless Steel |
|
DJ5-BSF |
With |
Without |
With |
Without |
Steel |
|
DJ5-BS2F |
With |
With |
With |
Without |
Steel |
|
DJ5-BSHF |
With |
Without |
With |
Without |
Hidden |
|
DJ5-BS2HF |
With |
With |
With |
Without |
Stainless Steel |
