Electronic Parcel Locker Controller With RS485 4ch For Lock and Light Control
YCSB04MD
Description
Images

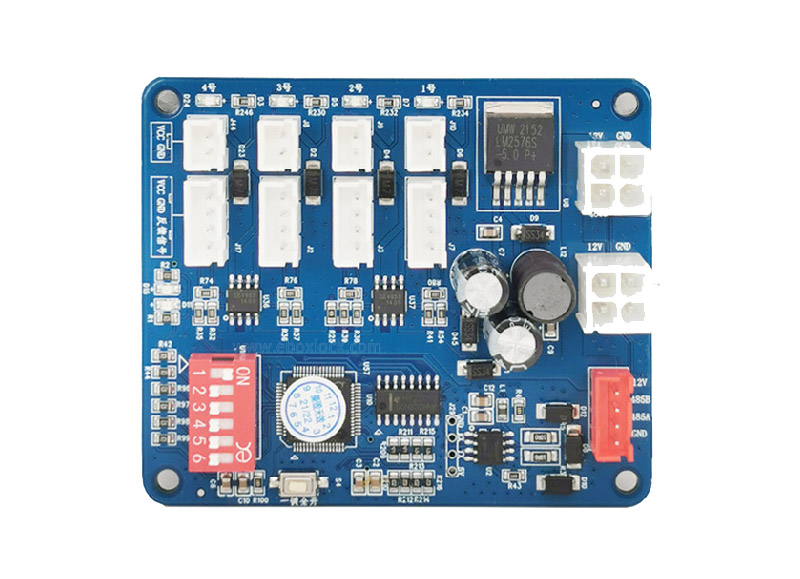

Electronic locker systems controller YCSB04MD is a 4 channels relay board that performs lock control in the electronic locker system. It is the interface between the main controller and the electronic locks. The slave controller operates under the control of the main controller and provides relay output to the locks, meanwhile provides report of the door status to the main. A single slave controller can control up to 4 locks and 4 lights, with extension board by RS485 interface, the system is able to control 485 locks, each corresponding to an vending locker box or smart mailbox.
Features：
Specification:
Smart Electronic Locker Controller Series
System Diagram:
The locker control board is suitable for access control of smart lockers, parcel delivery controllers and vending machines.

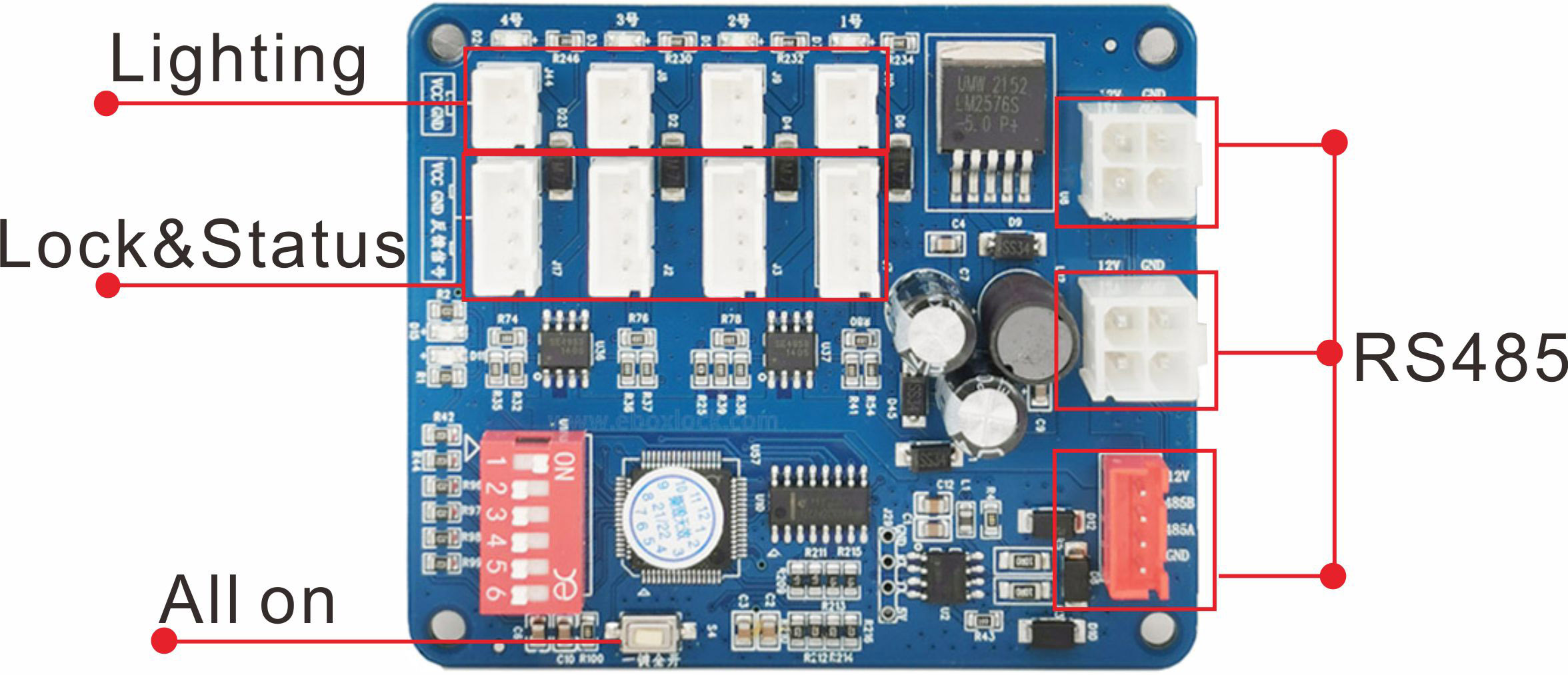

Features：
l 2XRS485 Interfaces
l Supports up to 4ch electronic locker locks
l Extendable up to 968 channels
l Allows 4ch door status reporting
l Power supply of locker locks
l Allows 4ch LED lights
l Development based on ARM
l Compatible with Android, Windows, Unix, Linux (Raspberry)
l Optional Modbus protocol
Specification:
Operation Voltage: 12-24VDC
Max load per board: 4A
Max Load Per Channel: 2A
Standby Power: 0.48W
Frequency: 13.56MHAZ
Communication rate: 9.6Kbps
Data reserve time: 10 years
Working Temperature: -10ºC ~ +80ºC
Working Humidity: 10%-90%R.H
Atmospheric pressure: 86kpa-106kpa
Dimensions LxWxH: 78mm*65mm*32mm
Gross Weight: 0.3kg
We offer wide range of controllers for electronic locker solution and vending machine control system.
OEM and ODM is available for specific requirement.

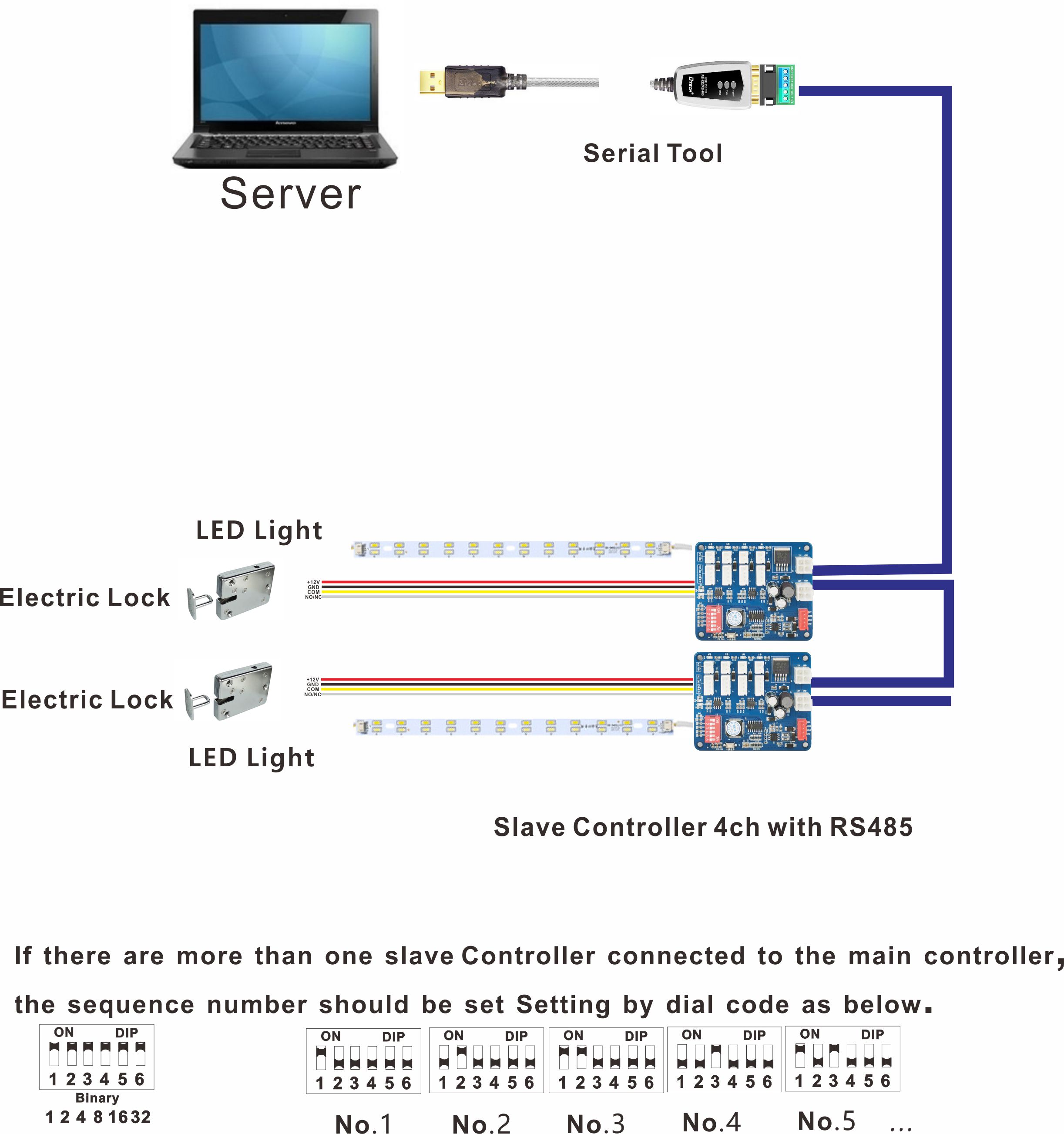

System Diagram:
The locker control board is suitable for access control of smart lockers, parcel delivery controllers and vending machines.
| Model No. | Lock Channel | Lock | Light | IR sensor | Time Delay |
| YCSB02MD | 2 | √ | √ | ||
| YCSB04MD | 4 | √ | √ | ||
| YCSB06M | 6 | √ | |||
| YCSB08M | 8 | √ | |||
| YCSB12M | 12 | √ | |||
| YCSB16M | 16 | √ | |||
| YCSB24M | 24 | √ | |||
| YCSB24MD | 24 | √ | √ | √ | |
| YCSB32MD | 32 | √ | √ | √ | √ |
| YCSB50MD | 50 | √ | √ | √ | √ |
| YCSB66MD | 66 | √ | √ | √ | √ |
| YCDB12M | 12 | √ | |||
| YCDB12M | 24 | √ | |||
| YCSDH06M | 6 | √ | √ | √ | |
| YCSDH08M | 8 | √ | √ | √ | |
| YCSDH12M | 12 | √ | √ | √ |
