Outdoor Electronic Rotary Locks, Stainless Steel IP67 Waterproof
MH8026PH
Features:
l Tough metal construction, stainless steel option
l Sealed Microprocessor controlled gear motor
l Operates against heavy mechanical loads
l Optional internal microswitch for reporting open/close status
l Push to lock and electronic release
l Corrosion-resistant version available for outdoor use
l High strength and durability
l Accept control inputs from any access control devices
Specifications:
|
Operation Voltage: |
12-24VDC Nominal |
|
Operating Current:: |
Less than 100mA at 12VDC |
|
Standby Current: |
less than 10uA |
|
Control Signal Voltage: |
8-26VDC |
|
Time of Latch Release: |
600 million second free load |
|
Operation Mode: |
Fail secure |
|
Holding Force: |
600KG |
|
Cycle Rating: |
More than 1,000,000 |
|
MS Contact Rating: |
5A @125V |
|
Working Temperature: |
-40ºC ~ +80ºC |
|

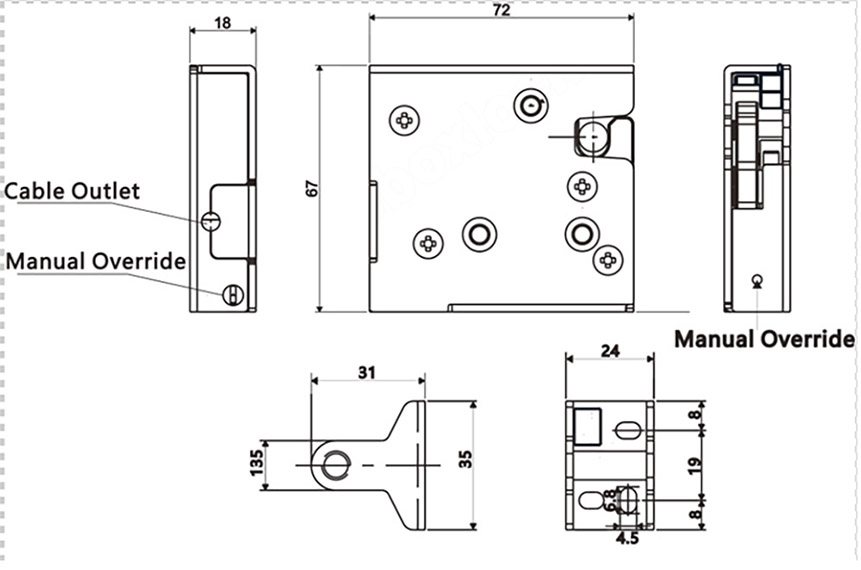

Dimensions LxWxH: |
72.25mm*72mm*18mm |
|
Weight: |
330g |
|
Protection Class: |
IP67 |
|
Certificate: |
CE, RoHs, FC, ISO9001 |
Part No.
|
Part No |
Micro switch |
Manual Override |
Construction |
IP Class |
|
MH8026 |
Without |
Hidden |
Steel |
IP40 |
|
MH8026S |
With |
Hidden |
Steel |
IP40 |
|
MH8026L |
Without |
Exposed |
Steel |
IP40 |
|
MH8026LS |
With |
|
Steel |
IP40 |
|
MH8026P |
Without |
Hidden |
Steel |
IP67 |
|
MH8026SP |
With |
Hidden |
Steel |
IP67 |
|
MH8026LP |
Without |
Exposed |
Steel |
IP67 |
|
MH8026LPS |
With |
Exposed |
Steel |
IP67 |
|
MH8026H |
Without |
Hidden |
Stainless S. |
IP40 |
|
MH8026HS |
With |
Hidden |
Stainless S. |
IP40 |
|
MH8026LH |
Without |
Exposed |
Stainless S. |
IP40 |
|
MH8026LSH |
With |
Exposed |
Stainless S. |
IP40 |
|
MH8026PH |
Without |
Hidden |
Stainless S. |
IP67 |
|
MH8026SPH |
With |
Hidden |
Stainless S. |
IP67 |
|
MH8026LPH |
Without |
Exposed |
Stainless S. |
IP67 |
|
MH8026LPSH |
With |
Exposed |
Stainless S. |
IP67 |
