Drop Sensor With 16 Emitters for Object Fall Detection
VHOP40-1617
Description
Images

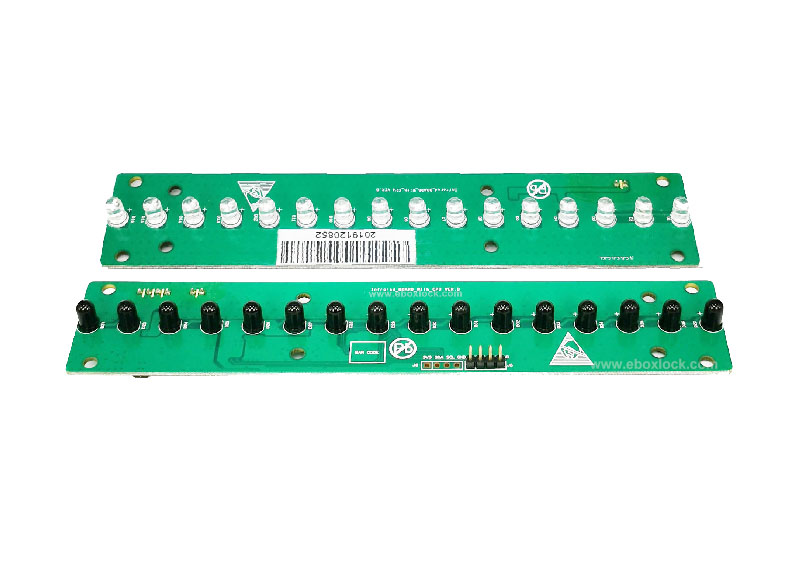

Drop Sensor VHOP40-1617 is a set of compact Infrared modules with 16 emitters and receivers to detect whether product is vended after a selection is made. The drop sensor, attached to the underside of the delivery chute, sends a signal to the microcontroller when a product hits the delivery chute. It includes IR emitter and receiver for covering up to 1 meter. The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sun light; even transparent item can be detected.
Features:
- Working voltage ranges 10V-32V
- High intensity of IR sensor for efficient detection
- Multiple sensitivity levels for different applications.
- Immune from sunlight
- Able to detect transparent object..
- Compact size for hidden installation.
- Compatible with all types of vending machines
- Able to customize for size and sensitivity
Specifications:
| Operation Voltage | 12/24VDC±10% |
| Operation Current | 160/80mA |
| Standby consumption TX | 1.6-2.5W |
| Standby consumption RX | <1W |
| Digital output LOW | 200-400mV |
| Digital output HIGH | 2-3.6V(Customized) |
| EM WL | 940nm |
| PS WL | 700-1100NM |
| Offset angle | Less than 15 degrees |
| Offset Range | Less than 2cm within 1m |
| Detection range | Less than 1.5m |
| Working Temperature | -40C ~ +70C |
| Gross weight: | 0.3kg |
We offer various Drop sensors for object fall detection of vending machine, please contact for more detail.
Order Particulars:
| Model No. | IR emitters/ Receivers Qty | Size(mm) | Interval (mm) |
| VHOP40-2424 | 24 | 240X33 | 10 |
| VHOP40-1617 | 16 | 171.4x14 | 11 |
| VHOP40-1532 | 15 | 307.6x32.7 | 22 |
| VHOP40-1214 | 12 | 130x32.7 | 11 |
| VHOP40-932 | 9 | 94.4 x 32.7 | 11 |
| VHOP40-640 | 6 | 60 x 40 | 10 |
