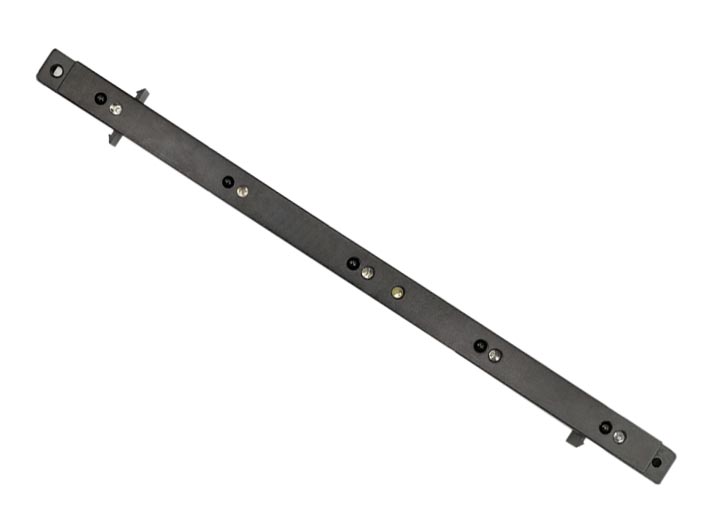

Infrared Object Detection Sensor
VHOP30
Description
Images
The Infrared Object Detection Sensor offers simple, user friendly and fast obstacle detection using infrared; it is non-contact detection. The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sun light. The module will output a HIGH IF NO object is detected and a LOW if an object is detected.
Infrared sensor uses special sensor to modulate IR signal emitted from 5 IR transmitters and detects the modulated IR signal reflected back from a nearby object.
Features
§ Low current consumption, less than 10mA
§ 3 pin interface which are signal, GND and 12V
§ Small LED as indicator for detection status
§ Obstacle detection up to 5cm
§ The sensing range will not be affected by the surface color of obstacle.
§ Compact size for hidden installation.
§ Compatible with all types of locker access controllers
Specification:
|
Operation Voltage |
8-24VDC |
|
Working Temperature |
-10C ~ +80C |
|
Working Humidity |
10%-90%R.H |
|
86kpa-106kpa |
|
|
Dimensions LxWxH |
300mm*15mm*10mm |
|
Gross Weight |
0.3kg |
