IR Sensor With 9 Emitters For Object Counting
VHOP40-932
Description
Images

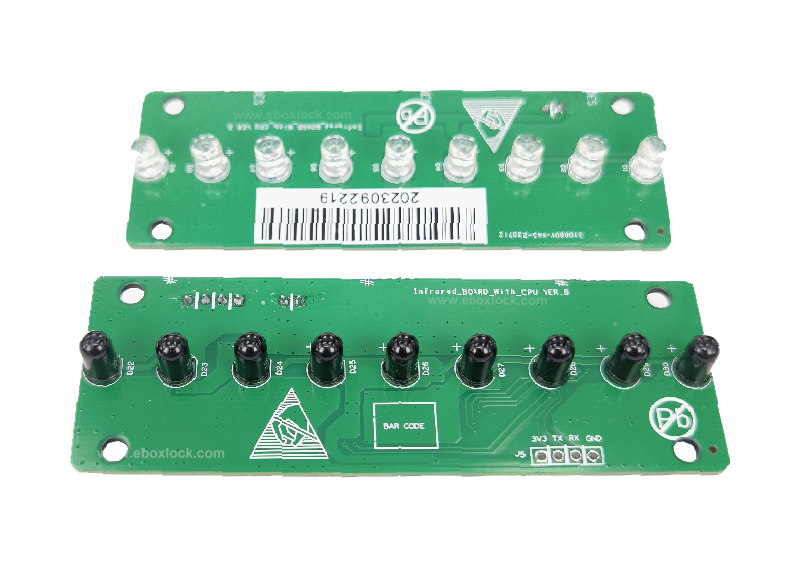

Infrared Sensor VHOP40-932 is a set of compact modules to detect whether product is vended after a selection is made. Once the product passes through the sensor, the machine confirms the transaction as complete. The drop sensors, when used in vending machines, ensure that your product dispenses or gives customers money back to make another selection.

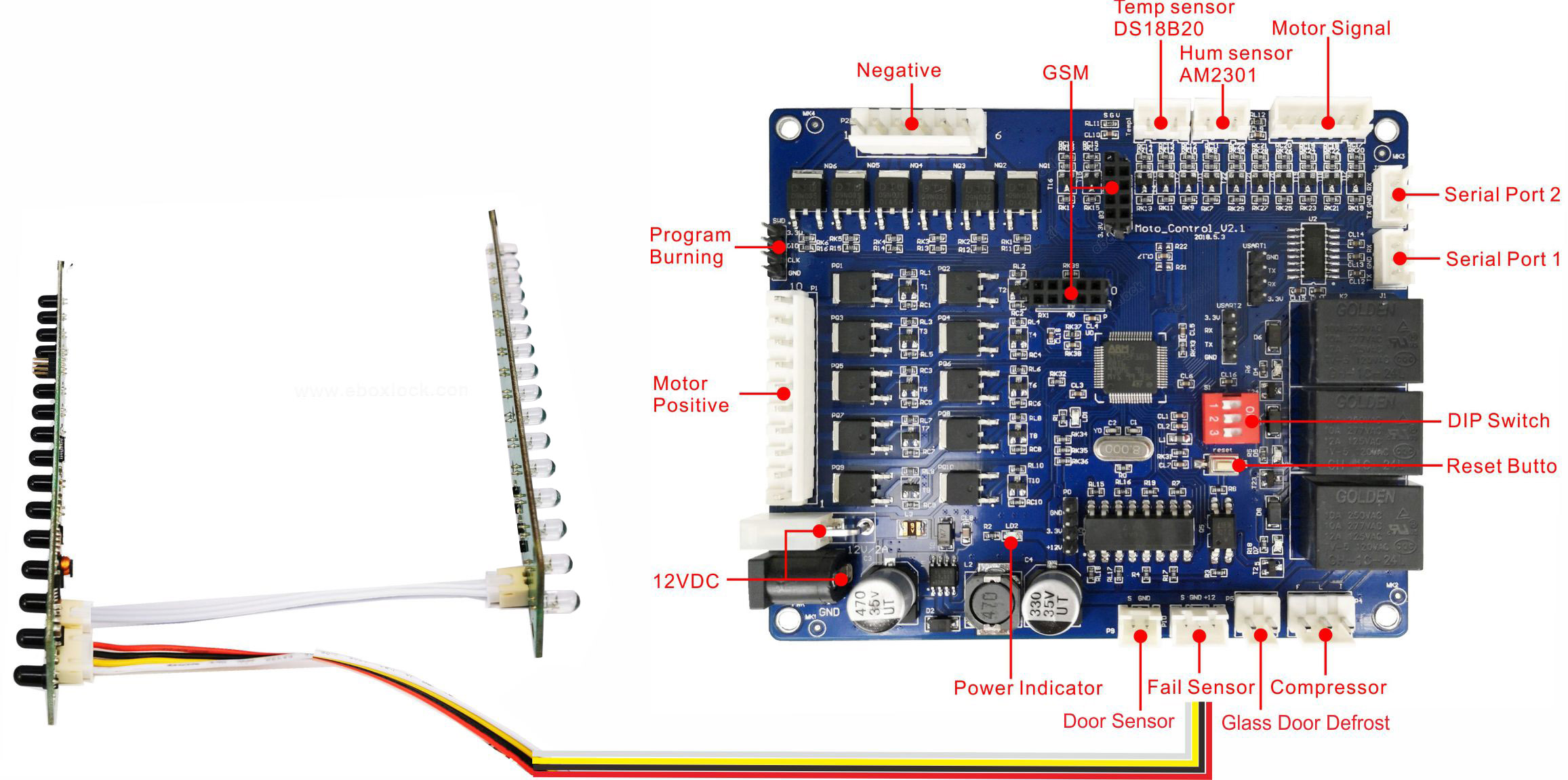

The drop sensor, attached to the underside of the delivery chute, sends a signal to the microcontroller when a product hits the delivery chute. It includes IR emitter and receiver for covering up to 1 meter. The implementations of modulated IR signal immune the sensor to the interferences caused by the normal light of a light bulb or the sun light; even transparent item can be detected.
Features:
- Working voltage ranges 10V-32V
- High intensity of IR sensor for efficient detection
- Multiple sensitivity levels for different applications.
- Immune from sunlight
- Able to detect transparent object..
- Compact size for hidden installation.
- Compatible with all types of vending machines
- Able to customize for size and sensitivity
Specifications:
| Operation Voltage | 12/24VDC±10% |
| Operation Current | 160/80mA |
| Standby consumption TX | 1.6-2.5W |
| Standby consumption RX | <1W |
| Digital output LOW | 200-400mV |
| Digital output HIGH | 2-3.6V(Customized) |
| EM WL | 940nm |
| PS WL | 700-1100NM |
| Offset angle | Less than 15 degrees |
| Offset Range | Less than 2cm within 1m |
| Detection range | Less than 1.5m |
| Working Temperature | -40C ~ +70C |
| Gross weight: | 0.3kg |
We offer various Drop sensors for object fall detection of vending machine, please contact for more detail.
Order Particulars:
| Model No. | IR emitters/ Receivers Qty | Size(mm) | Interval (mm) |
| VHOP40-2424 | 24 | 240X33 | 10 |
| VHOP40-1617 | 16 | 171.4x14 | 11 |
| VHOP40-1532 | 15 | 307.6x32.7 | 22 |
| VHOP40-1214 | 12 | 130x32.7 | 11 |

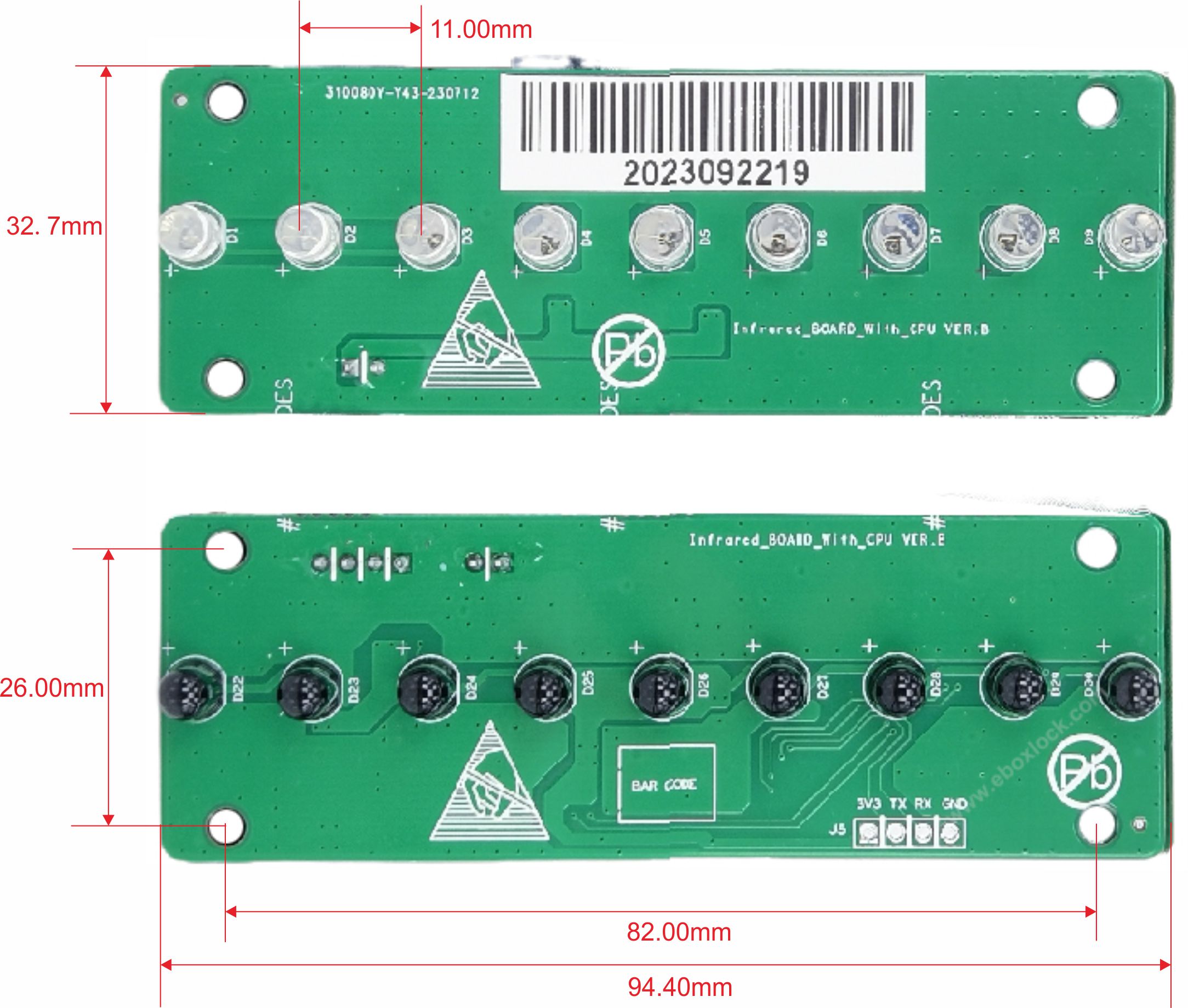

| VHOP40-932 | 9 | 94.4 x 32.7 | 11 |
| VHOP40-640 | 6 | 60 x 40 | 10 |
