RS485 Smart Locker Controller 24ch With Open Protocol
AL2448N
Description
Images

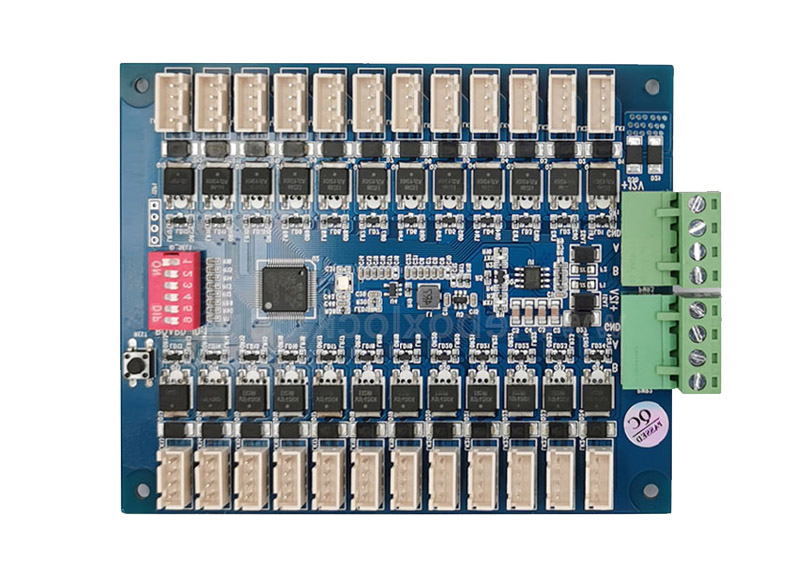

Smart locker Controller AL2448N is a 24 channels relay board that performs lock control in the electronic locker system. It is the interface between the main controller and the electronic locks. The slave controller operates under the control of the main controller and provides relay output to the locks, meanwhile provides report of the door status to the main. A single slave controller can control up to 24 locks, with extension board by RS485 interface, the system is able to control 485 locks, each corresponding to an individual mailbox or locker.
Features：
Specification:
Smart Electronic Locker Controller Series
We offer wide range of controllers for electronic locker solution and vending machine control system. OEM and ODM is available for specific requirement.
System Diagram:

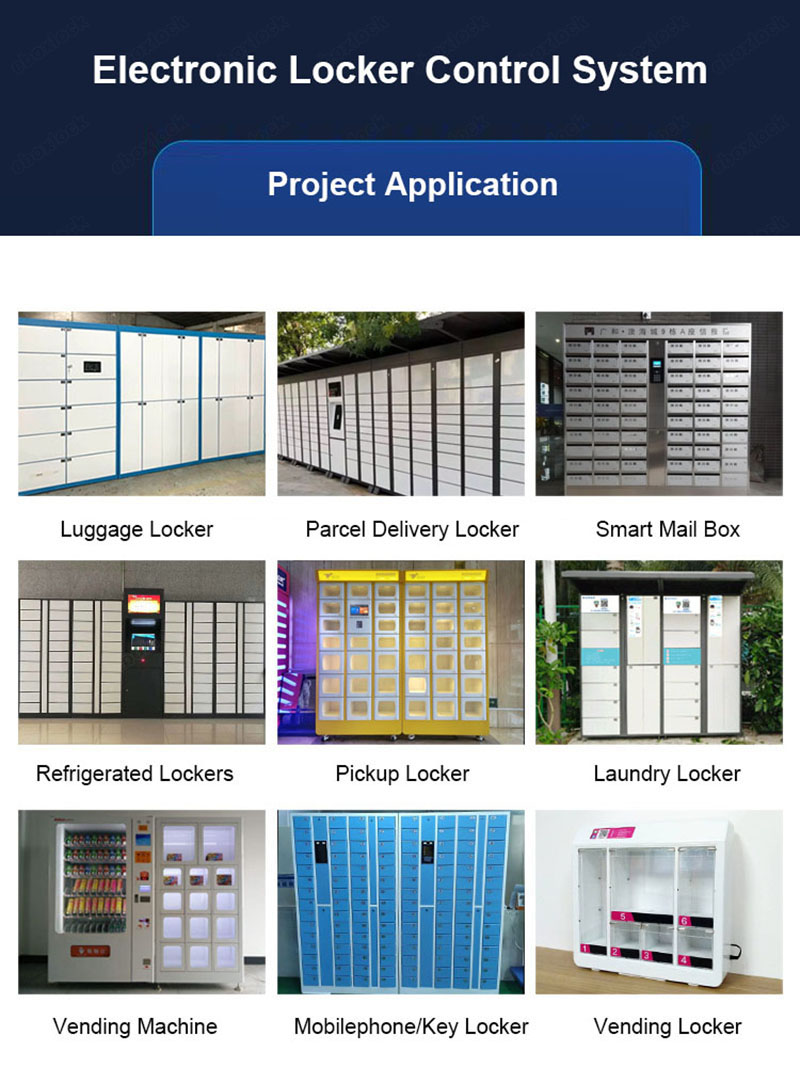

The locker control board is suitable for access control of smart lockers, parcel delivery controllers and vending machines.

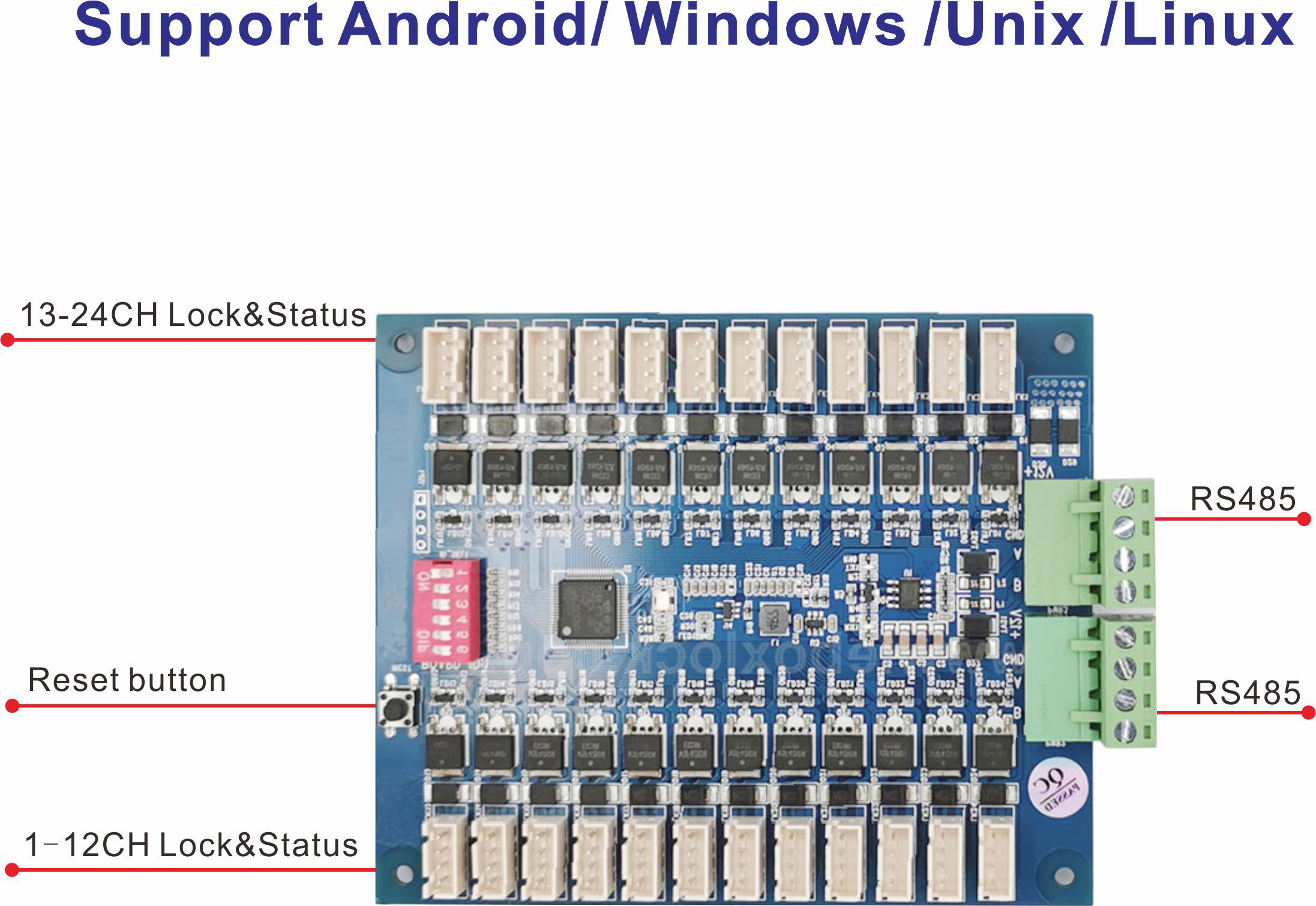

Features：
l 2xRS485 Interfaces
l Supports up to 24ch electronic locker locks
l Extendable up to 968 channels
l Allows 24ch door status reporting
l Power supply of locker locks
l Adjustable unlock time
l Development based on ARM
l Compatible with Android, Windows, Unix, Linux (Raspberry)
l Optional Modbus protocol
Specification:
|
Operation Voltage |
12-24VDC |
|
Power Consumption |
30W |
|
Max Load Per Channel |
4A |
|
Standby Power |
0.48W |
|
Frequency |
13.56MHAZ |
|
Communication rate |
9.6Kbps |
|
Data reserve time |
10 years |
|
Working Temperature |
-10ºC ~ +80ºC |
|
Working Humidity |
10%-90%R.H |
|
86kpa-106kpa |
|
|
Dimensions LxWxH |
113.3mm*90mm*32mm |
|
Gross Weight |
0.5kg |
