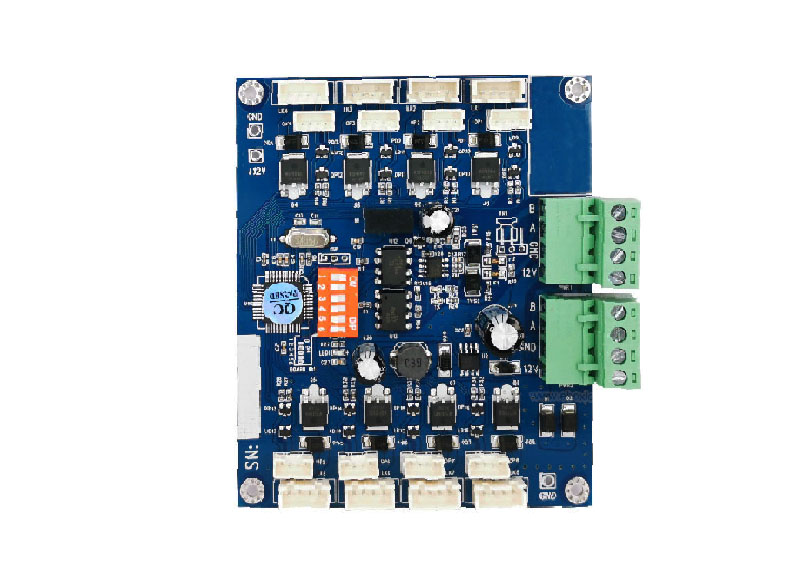

Vending Machine Locker Controller with RS485 8CH
AL0848
Parcel Delivery Locker Controller with RS485 AL0848 is a 8 channels relay board that performs lock control in the electronic locker system. It is the interface between the main controller and the electronic locks. The slave controller operates under the control of the main controller and provides relay output to the locks, meanwhile provides report of the door status to the main. A single slave controller can control up to 8 locks, with extension board by RS485 interface, the system is able to control 984 locks, each corresponding to an individual mailbox or locker.
Features:
l 2xRS485 Interface
l Supports up to 8ch electronic locker locks
l Extendable up to 968 channels
l Allows 8ch door status reporting
l Power supply of locker locks
l Adjustable unlock time
l Development based on ARM
l Compatible with Android, Windows, Unix, Linux (Raspberry)
l Optional Modbus protocol
Specification:
Smart Electronic Locker Controller Series
We offer wide range of controllers for electronic locker solution and vending machine control system. Welcome OEM and ODM.

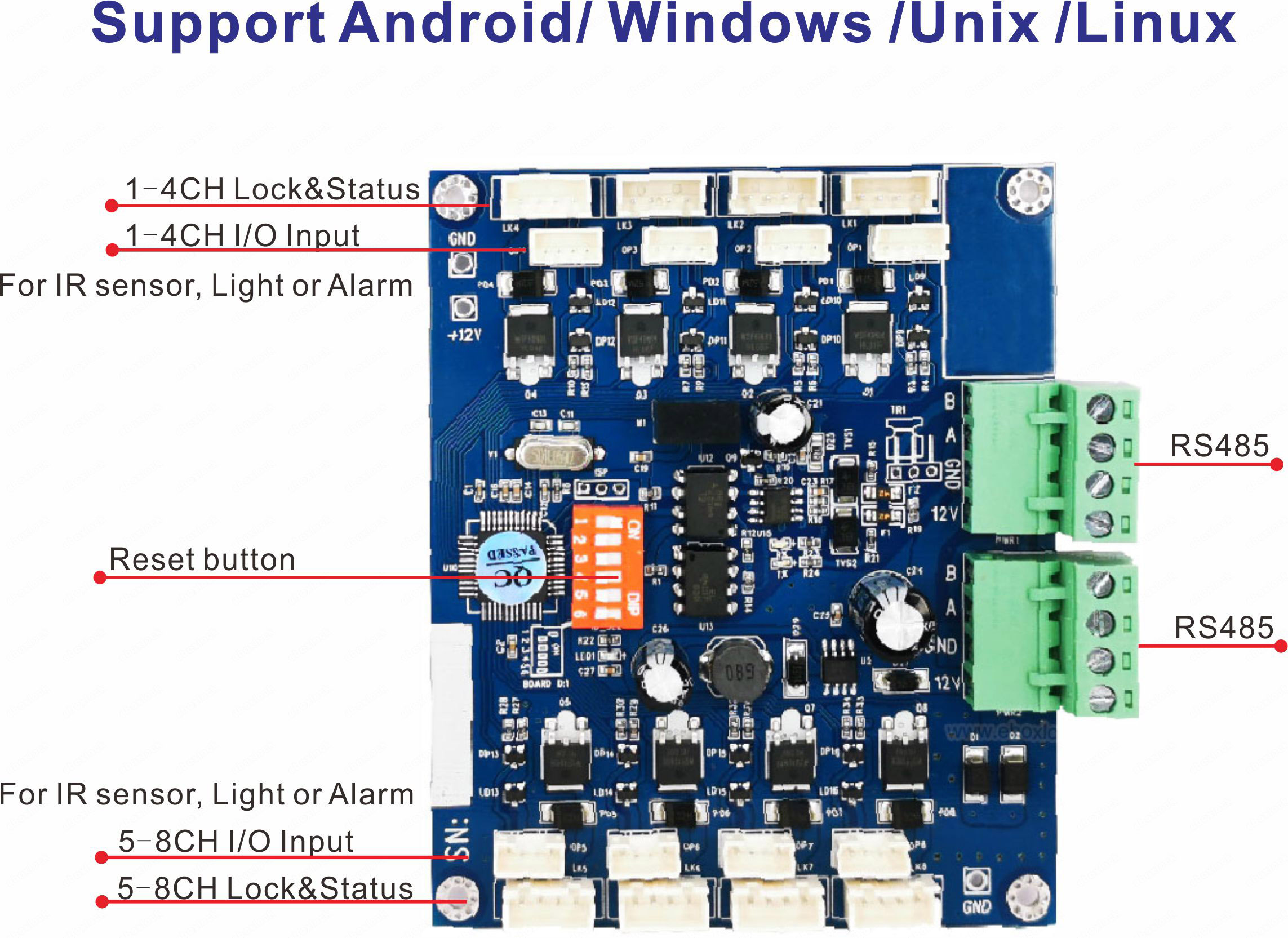

System Diagram:
The locker control board is suitable for access control of smart lockers, parcel delivery controllers and vending machines.
Applications
Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks
Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
Pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers
Keyless Refrigerator Lockers
