Smart Delivery Locker Controller with TCP/IP
AL2445

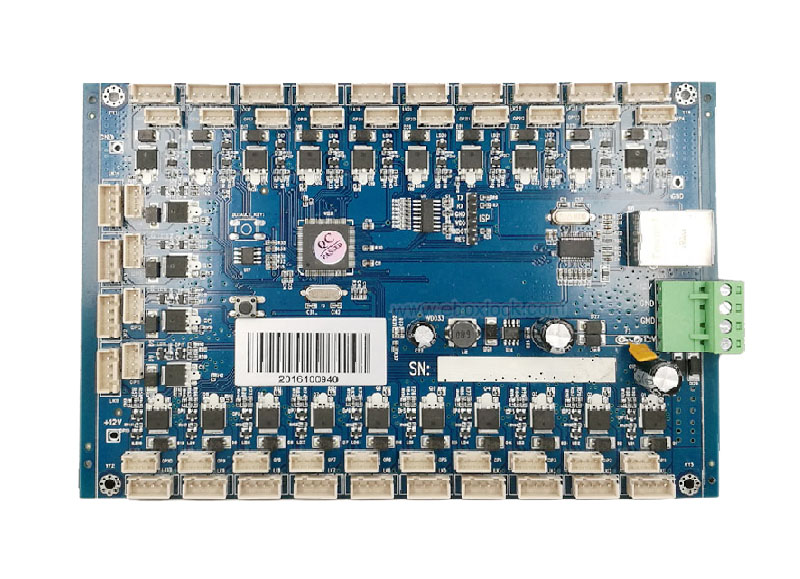

The Locker Lock Controller AL2445 is a 24-channel relay board designed for electronic locker systems. It receives control commands from main board and delivers lock actuation signals.
Features:
Ÿ Support standard TCP/IP, Modbus and RS485 protocol
Ÿ Supports up to 24 electronic locker locks
Ÿ RS485 extension up to 140 channels
Ÿ TCP extension no limitation
Ÿ Provides instant door status reporting

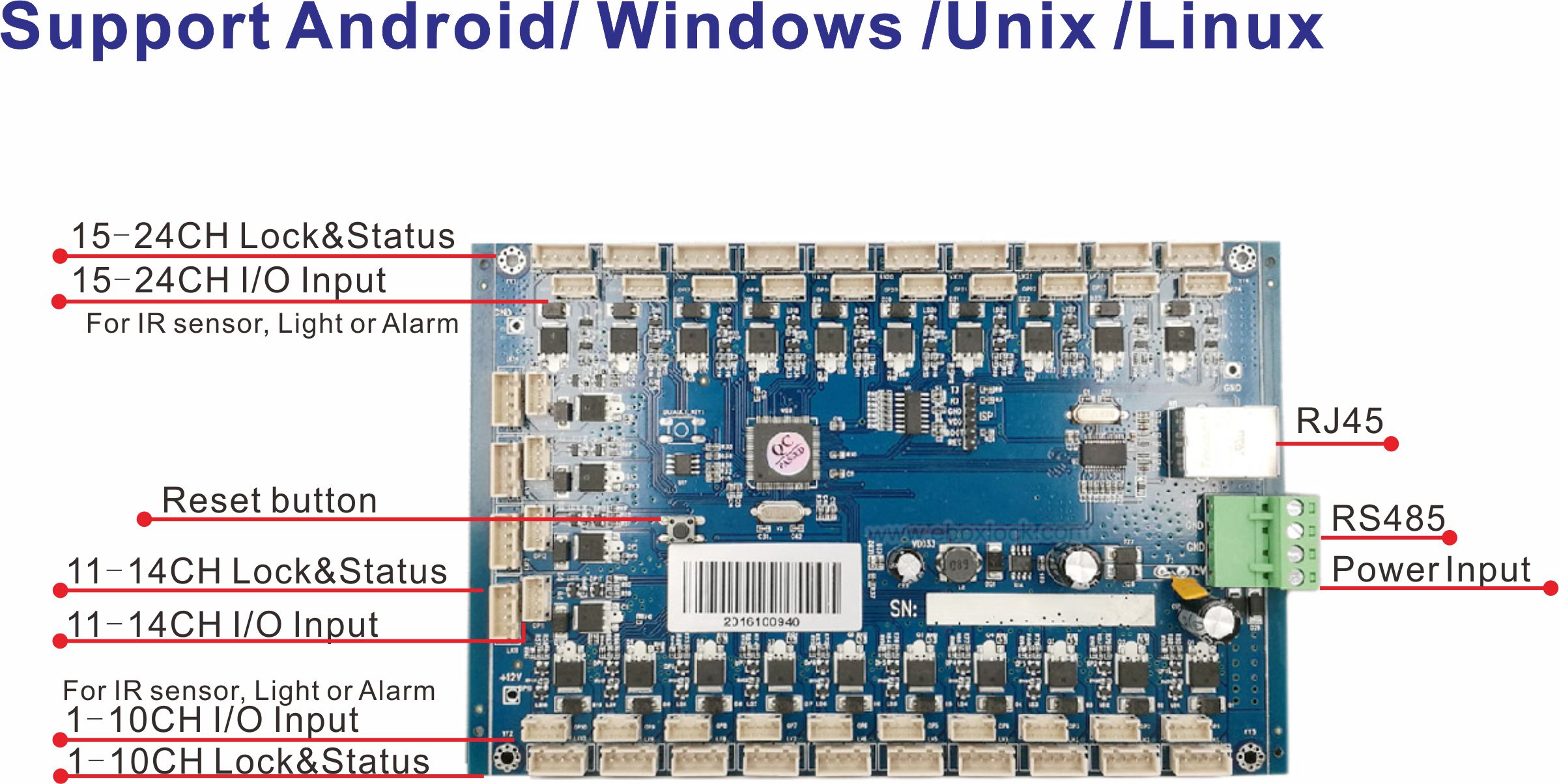

Ÿ I/O ports for IR sensor, door sensor, alarm, or LED
Ÿ Reader and keypad interface for standalone operation
Ÿ Expandable via TCP/IP or RS485
Ÿ Adjustable unlock time
Ÿ Compatible with Android, Windows, Unix, Linux (Raspberry)
Specification:
Standby Consumption Less than 0.5W
Max Load Per Channel 2A
Communication rate RJ45: 10M
RS485: 9600 by default
Data reserve time 10 years
Flash memory 64K
Working Temperature -10ºC ~ +80ºC
Working Humidity 10%-90%R.H
Atmospheric pressure
86kpa-106kpa
Dimensions LxWxH 178.8mm*123.2mm*32mm
Gross Weight 0.2kg
Certificate CE&ROHS

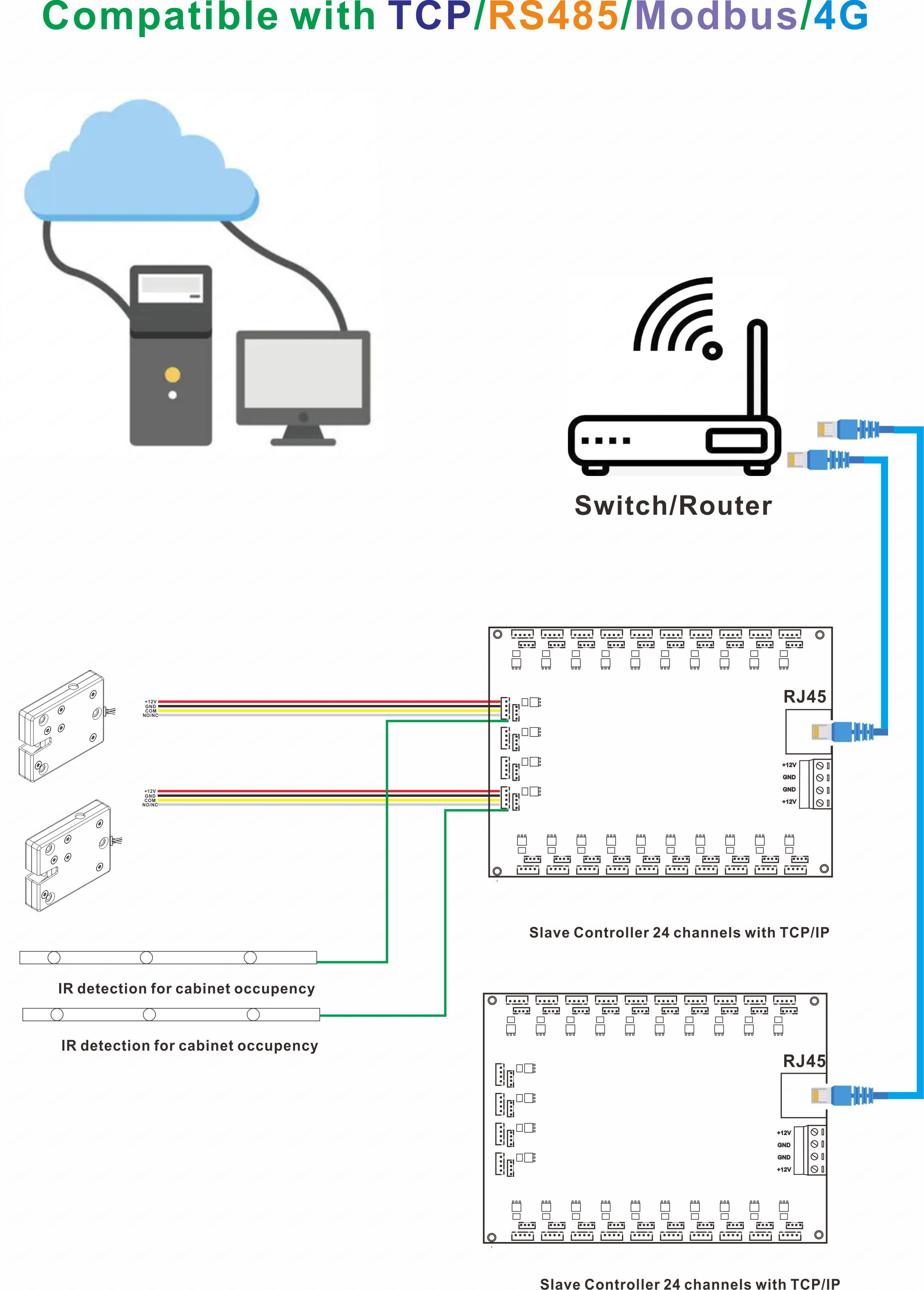

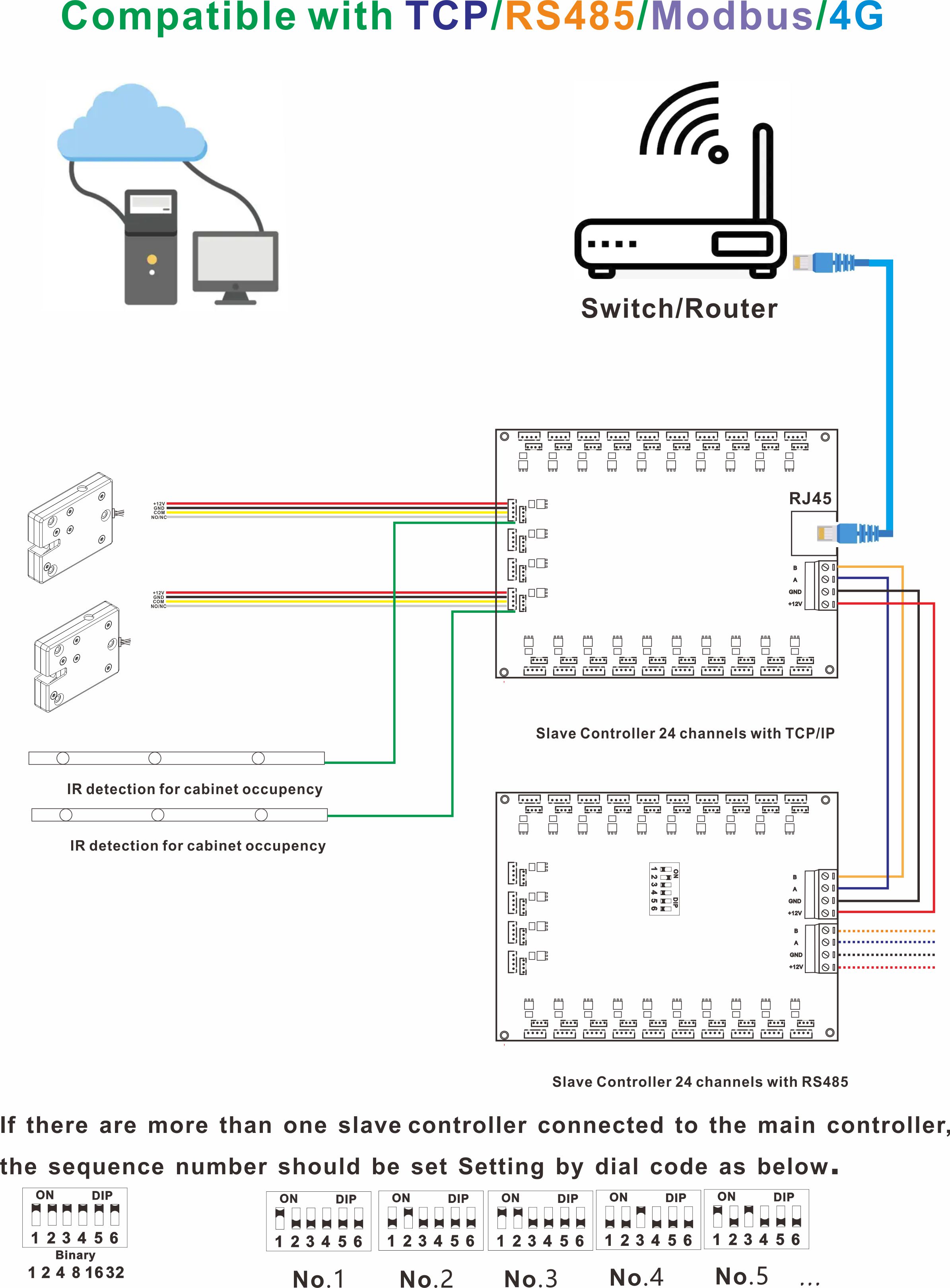

System Diagram:
The locker control board is suitable for access control of smart lockers, parcel delivery controllers and vending machines.
Smart Electronic Locker Controller Series
We offer wide range of controllers for electronic locker solution and vending machine control system. Welcome OEM and ODM.
Applications
Parcel Delivery Lockers
Smart Lockers
Vending Machine Lockers
Telecommunication Kiosks
Bank Locker Kiosks
Cash Drawers
Electronic Mailboxes
Electronic Motorcycle Trunk
Smart Bike& Scooter station Lockers
Pharmaceutical cabinets, cash drawers and display cases
Beverage Freezers
Keyless Refrigerator Lockers
