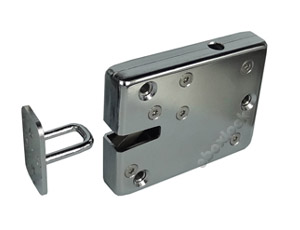

Electronic Cabinet Lock (MA1208)
MA1208
Electric Cabinet Lock (MA1208) is a compact and all-metal lock ideal for delivery locker, cabinets, drawers and steel furniture. Surface mounting either vertically or horizontally offers easy and flexible installation. The electric cabinet lock is compatible with any existing access control system or simply controlled through a remote keypad or key switch. The cabinet lock allows mechanical override for emergency open. Electric Cabinet Lock (MA1208) is energy saving, cost efficient, robust, easy to install and suitable for one or multiple cabinet applications.
Features
§ Available in 12VDC or 24VDC
§ Superior heavy duty metal construction
§ Chrome-plated steel housing
§ Convenient mechanical override enables manually release during power failure
§ Three-bolt regular triangle mounting enables high security and low install cost
§ Accepts access control signals from numeric keypad, RFID card, remote or fingerprint
§ Can be fitted to Cabinets, lockers, drawers and steel furniture etc
§ Patented Design
§ 2 years limited warranty
Specification
|
Operation Voltage |
12/24VDC intermittent ±10% |
|
Power Consumption |
12V DC 800mA |
|
Operation Mode |
Fail Locked |
|
Holding Force |
150KG |
|
Maximum power on time |
Less than 30 second |
|
Solenoid |
Rated for intermittence use |
|
Cycle Rating |
More than 1,000,000 times |
|
Mechanical Override |
7mm hole |
|
Working Temperature |
-20ºC ~ +60ºC |
|
Dimensions LxWxH |
72mm*56mm*13.8mm |
|
Gross Weight |
250g |
|
Protection Class |
IP20 |
|
Compliance |
CE and RoHs certificate |

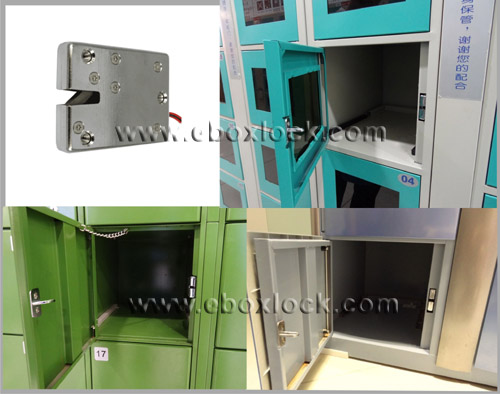

Application:
Electronic Cabinet Lock is ideal for various applications as following:
Delivery locker for supermarket, spa or school
Storage locker for school, spa and etc
Retail display cases and drawers
Filing cabinet
Utility cabinets and drawers
Museum or retail product display cases
Pharmaceutical cabinets and drawers
Electronic mailbox and delivery box
Warranty:
We guaranty that the products you order from us is true, accurate, current, and complete in all respects; you will be notified immediately of any changes to product information by e-mail. We offer one year warranty from the delivery date for any product in case of original defect or dysfunction. The buyer should return the product in the original conditions to us and should bear the shipping costs and we will bear the cost of parts replacement. We strive for 100% customer satisfaction on every sale we complete.
